24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor

24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor
24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor

Large Image :  24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor

Product Details:
Place of Origin: China
Certification: CE
Model Number: BLB1000
Document: BLB Brushless Instruction M...al.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: 135-175USD
Packaging Details: 34*28*41cm
Delivery Time: 2-10 days
Payment Terms: D/A,L/C,D/P,T/T,Western Union
Supply Ability: 10000pcs/month
Contact Now Chat Now

24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor

Description
Color: Black Maximum Door Weight: 1000KG
Rated Power: 200W Door Speed: 7-15m/min
Input Voltage: 110V/220V Output Voltage: DC24V
Power Lithium Battery: 5Ah/10Ah Built-in Motor Speed: 2100rpm
Limit Switch: Full-area Electronic Limit Switch Operating Decibels: ≤ 53 DB

Advanced 24V Brushless Garden Door Motor
Advanced 24V brushless garden door motor featuring no mechanical limits, no re-learning requirements, and adjustable door speed from 7-15m/min.
Brushless Motor Technology

Utilizes brushless motor design for ultra-long service life and maintenance-free operation. Generates no heat during extended running periods and operates with ultra-quiet performance.

Full-range Electronic Limit System

Eliminates the need for mechanical limit switches, making installation and debugging more convenient. Features precise position memory and complete functionality with no requirement to re-learn travel limits after power restart or manual door operation when clutch is released.

Adjustable Speed & Slow-Down Distance

Motor running speed is adjustable with a 50% adjustment range, making it suitable for curved gates and folding gates. Both slow speed and slow-down distance parameters are fully adjustable.

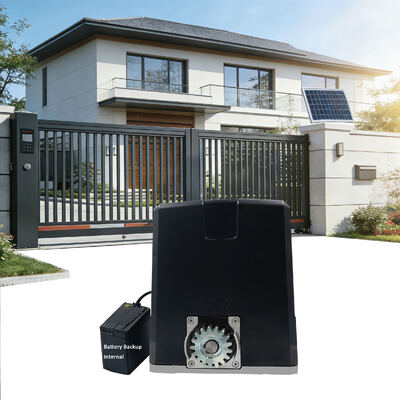

Battery Backup Support

Motor operates on DC24V output voltage, allowing connection to backup batteries and solar panels. Optional power lithium batteries (5Ah or 10Ah) available with ultra-long service life of 10 years.

Technical Specifications
Model BLB1000 BLB1500 BLB2000 BLBH-18M BLBH-24M BLBH-36M
Maximum Door Weight 1000KG 1500KG 2000KG 1000KG
Rated Power 200W 300W 400W 300W
Door Speed 7-15m/min 7-18m/min -12-24m/min 18-36m/min-
Input Voltage 110V/220V 110V/220V - - - -
Output Voltage DC24V DC24V - - - -
Power Lithium Battery 5Ah/10Ah Built-in 5Ah/10Ah Built-in 10Ah Built-in 5Ah/10Ah Built-in
Lead-Acid Battery 2.6Ah Built-in 5Ah external / 5Ah external
Motor Speed 2100rpm 2800rpm 3700rpm 5500rpm
Limit Switch Full-area electronic limit switch Full-area electronic limit switch - - - -
Maximum Travel Limit Switch 10m 10m 15m 15m
Operating Decibels ≤ 53 dB ≤ 53 dB ≤ 53 dB ≤ 53 dB
Operating Temperature -25℃~+65℃ -25℃~+65℃ - - - -
Protection Rating IP65 IP65 IP65 IP65 IP65 IP65
24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 0 24V Brushless Garden Door Motor with No Mechanical Limits and Adjustable Door Speed 7-15m/min Smartdoor Motor 1
Dimensions:
Length: 193mm
Width: 169mm
Height: 285mm
