3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use

3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use
3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use 3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use 3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use

Large Image :  3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use

Product Details:
Place of Origin: China
Certification: CE
Model Number: BG3500
Document: BG3500, BG4500,BG6000 Heavy...V1.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 380-880USD
Delivery Time: 7-15days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Unlimited quantity
Contact Now Chat Now

3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use

Description
Product Name: Heavy Duty Sliding Door Opener Input Voltage: 220V/AC 110V/AC 50/60Hz
Output Voltage: DC36V Gate Speed: 15m/m
Motor Power: 450W Manual Release: Yes
Max Gate Weight: 3500kg Remote Control: Yes
Operating Temperature: -30°C~+65°C Protection Level: IP65
Highlight:

3500KG remote control sliding gate motor

,

Automatic remote control sliding gate motor

,

36V remote control sliding gate opener

DC 3500KG Sliding Gate Motor Automatic DC 36V Waterproof for Industrial Use
Function Description:
Anti-overtravel:
Every time the first power-on operation, the gate will be slow to the limit to prevent inertia out of the limit, When the door reaches the travel limit, it can only press the button in the opposite direction, so that the motor can move to prevent it from rushing out of the limit, If the limit magnet is damaged or fails out of the limit it will automatically encounter resistance to protect the motor and control mainboard. Note: When the door is out of the limit, there is a power off protection function, and it can only move in the opposite direction after powering on.
Co-op Mode Available:
Two motors with the same type of control board on each can work synchronously. In this mode, infrared, loop, auto- close and other functions are sychronized.
Resistance rebound function:
When the gate is blocked, the gate can be switched in two ways: stop and rebound The gate will stop immediately if the door is blocked.
Bluetooth control module:
Original on-board Bluetooth module slot design, suitable for independent Bluetooth module (optional).
One-click matching Internet gating:
The control mainboard can be directly matched to the Internet controller/camera without adding any wiring equipment.
Motor running time protection:
Avoid motor running for a long time in stroke failure. After the control mainboard learns the stroke, the longest running time of the motor will be increased for a period of time on the basis of the stroke time to avoid the long running time of the motor.
Automatic door closing function:
The waiting time of the automatic door closing function can be adjusted according to the needs of the use, in the range of 1 to 250 seconds.
Soft start and soft stop function:
The slow speed strength and slow speed distance of the motor can be adjusted by potentiometer. Adjust the speed and distance of the motor when it enters the slow speed.

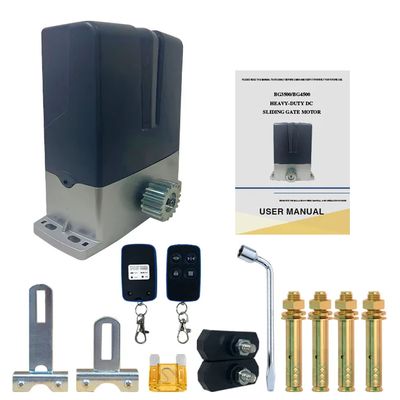

Product List:
  • Expansion bolt x4
  • Sliding gate motor x1
  • Remote control x2
  • Limit magnet x2, Higher and lower limit support x2
  • Clutch wrench x1
  • Backup fuse x1
Product Specifications:
Product Name Heavy Duty Sliding Door Opener
Model BG3500
Capacity 3500KG
Input Voltage AC 220V/110V ± 10%
Output Voltage DC36V
Gate Speed 15m/m
Torque 80N.m
Protection Class IP65
3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use 0

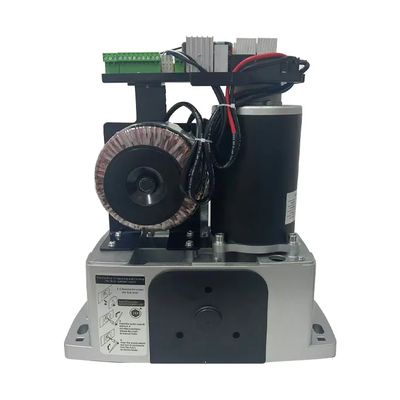

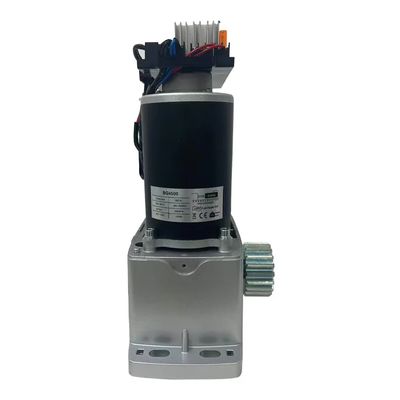

Structure of Motor
  1. Transformer support
  2. Electric motor
  3. Limit sensor
  4. Gear box bottom seat
  5. Output shaft gear
  6. Control main-board
  7. Transformer
  8. Clutch brake (inside of housing)
3500KG Remote Control Sliding Gate Motor Automatic DC 36V Waterproof For Industrial Use 1
