Swing Gate Motor
[Smart WIFI Handicap Door,Compatible with Alexa,Google Assistant]Handicap door opener can be voice controlled by smart speaker,Remote controlled on Phone App from anywhere
[Safe]Automatically re-open door if swing door opener notices an object in the closing path,make sure safety of the people in the door way,The door can not manually open after knob lock be closed,manually opening door is available after knob lock be opened
[Handicap Push Button for the Disabled)Wireless&wired mode can be chosen on the handicap push buttons,Wireless transmission adopts 2.4g wireless communication technology, with good frequency consistency and high wireless transceiver stability.
[Durable Motor]The motor is very durable and will not burn out easily due to unstable input voltage because it adopts wide voltage technique,workable with input voltage AC100V to AC240V
[Easy Installation&Debug]]Lots of parameters such as closing force,locking mode,hold opening time etc can be adjusted by handheld programmer,USA Technical phone support,easy installation and debug

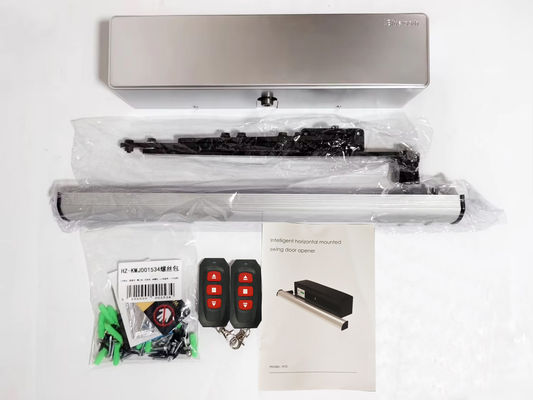

Product List
1:Host motor*1
2:Folding arm*1
3:Slide arm*1
4:Remote control*2
5:Screw packs*1
6:Instructions*1
Product parameter table
| Model |
H5 |
| Capacity |
180KG |
| Input Voltage |
AC 220V/110V ± 10% |
| Output Voltage |
DC24V |
|
Motor power
|
30W |
|
Power supply
power
|
160W
|
|
Motor voltage
|
24V
|
|
Remote control
frequency
|
430Mhz
|
|
working
temperature
|
-35℃-85℃
|
| Limit Switch |
Spring / Magnetic |
| Noise |
≤60dB |
|
Waterproof level
|
IPX4
|
This is a handicap door operator that is activated by wireless handicap push buttons.It can be manually open the door after knob lock be opened,can not manually open door after knob lock is closed,the door can be locked by electric lock and not allow others enter if it is necessary.
The commercial electric door opener is compatible with Alexa and google speaker,can be remotely controlled by phone APP TUYA from anywhere.
This handicap swing door opener operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians.Door can be locked by electric strike at night,ensure indoor safety.
With advanced wide voltage technique,it makes the door closer commercial auto open highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.
The swing opening door closer kit with an automatic door opener for both inswinging and outswinging doors,the door can be auto open via wireless handicap push button,wireless fob keychain,Phone APP TUYA voice open via alexa or google speaker.This electric swing door system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
Correct Arm Installation,Both Inswing&Outswing Opening Available
- Safe and easy operation for handicapped or pedestrians,both opening door manually by hand and automatically by push button are available
- Both inswing and outswing opening available,you will get both inswing arm and outswing arm
- Single and double doors are workable with the handicap door opener,double doors need 2sets auto door openers
- Widely used in both residential and commercial swing door
Handicap door opener is compatible with Alexa,Google home assistant,Remote controlled on Phone App from anywhere

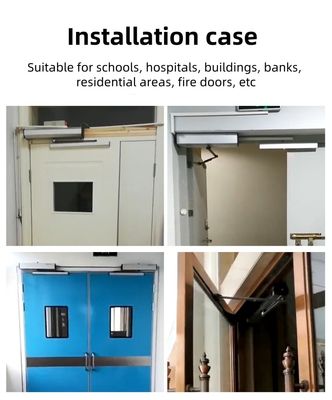

Application Scenarios
Suitable for hospitals, residential areas, schools, and markets
