DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor

DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor
DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor
DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor

Large Image :  DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor

Product Details:
Place of Origin: China
Brand Name: WSJ
Certification: CE
Model Number: H3
Document: H3-Bluetooth side door open...3).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 95-110USD
Packaging Details: 40cm*32cm*13cm
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: Unlimited
Contact Now Chat Now

DC 24V Brushless Motor Swing Gate Opener with 230kg Max Gate Weight and IPX4 Waterproof Automatic Gate Motor

Description
Product Name: Automatic Door Opener Application: Commercial
Motor: DC 24V Brushless Motor Usage: Electric Door System
Power Supply: 220V/AC 110V/AC 50/60Hz Max. Gate Weight: 230kg
Material: Aluminum Aolly Certificate: CE ISO
Remote Control: 2 Remotes Included Color: Silver/Grey
Motor Voltage: 24V

Electric Swing Gate Fence Motor with WiFi Control

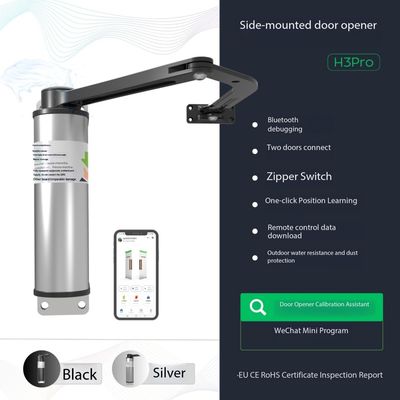

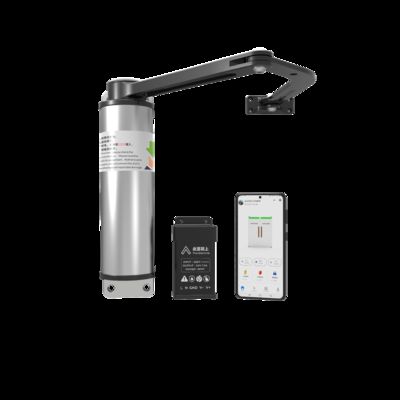

The H3 side mounted door opener is a robust swing gate solution designed for various door types including indoor doors, fire doors, wooden doors, iron doors, and aluminum alloy doors. Featuring an all-aluminum body for lifetime rust resistance, this motor combines high-strength alloy steel support arms with advanced high-temperature spraying treatment. The high-speed DC brushless helical motor delivers both silent operation and exceptional strength, while the multi-threaded controller ensures smooth opening and closing across diverse scenarios.
Key Features
  • Heavy-Duty Construction: Specifically engineered for heavy-duty doors with superior structural strength
  • Self-Locking Support Arm: Unique mechanical structure eliminates gear breakage issues and ensures secure door closing
  • Bluetooth Configuration: Simple mobile app debugging via Bluetooth mini-program reduces installation risks
  • Safety Indicator System: High-brightness LED dual-color lights display red when closed and green when open for safe passage
Technical Specifications
Input Voltage: 24V Power Supply: 45W
Control Interface: COM/NO dry contact Remote Control Frequency: 430MHz
Static Power: ≈ 1W Motor Speed: 1800RPM
Reduction Ratio: 1:200 Output Torque: 78N·m
Motor Shaft Diameter: 26mm Motor Type: DC brushless motor
Bluetooth Specification: BLE low-power Electric Lock Output: 1.2A (supports 2×280KG magnetic locks)
Working Temperature: -35℃ to 85℃ Access Control Output: 0.8A
Operating Humidity: 30% to 80% (no condensation) Remote Control Distance: ≈ 15M (interference-free)
Opening/Closing Speed: Adjustable 3-6S Durability: 1 million+ cycles
Waterproof Rating: IPX4 (splash proof)
Product Advantages
  • Heavy-Duty Output & High Efficiency: 80Nm torque handles door weights up to 230KG for large swing gates
  • Safe Low-Voltage Operation: 24V DC complies with global safety standards and eliminates electric shock risk
  • Robust Mechanical Construction: 45 steel arm material ensures durability under heavy loads and frequent use
  • All-Weather Reliability: Wide operating temperature range (-35°C to 85°C) for extreme environments
  • Outdoor Waterproof Design: Ideal for uncovered gates, farm doors, and exterior installations
  • Smart Control & Connectivity: Built-in Bluetooth enables remote setup and diagnostics via mobile app
  • Compact Design: Fits narrow gate pillars and confined installation spaces
  • Multi-Scene Adaptability: Suitable for residential villa gates, fire doors, wrought iron gates, agricultural enclosures, and automatic door retrofitting
