Smart Sliding Gate Kit
Product Introduction
⚙️ 【Adapted for 220V AC Power】- This bundle includes a universal AC-to-DC adapter (100–277V to DC24V), ideal for regions with 220V input. It ensures the DC gate opener operates reliably with stable 24V output. IP67 waterproof, aluminum alloy housing for safe, long-lasting performance.
⚙️ 【Efficient & Quiet Operation】- Equipped with a 280W motor and rack-driven system, it easily opens gates up to 1400lbs. infrared sensor stops and reverses if obstacles are detected. Operates smoothly and quietly (less than 45dB).
⚙️ 【Backup Battery & Solar Power】- Featuring a DC24V built-in lithium-ion battery, this gate opener ensures reliable operation for 3-5 days during power outages. The solar panel provides an eco-friendly power solution with easy plug-and-play installation - just connect the panel to the motor, no extra wiring needed.
⚙️ 【Smart WiFi Control】- The automatic gate opener features a pre-installed WiFi module, allowing you to control your gate remotely via the "eWeLink" App on your smartphone. Open and close the gate from anywhere with ease. Additionally, 2 remotes with 12V 27A batteries are included, with a 165ft control range for everyday use.
⚙️ 【Auto-Close & LED Status Indicator】- This rolling gate opener allows you to set the auto-close time between 1 and 60 seconds, ensuring the gate closes automatically after use. The built-in LED indicator shows the gate's status with a green light for open and a red light for closed, offering clear visibility at a glance.
| Model |
MD280 |
MD370 |
| Capacity |
600KG |
800KG |
| Input Voltage |
DC 220V/110V ± 10% |
DC 220V/110V ± 10% |
| Output Voltage |
DC24V |
DC24V |
| Rated Power |
280W |
370W |
| Gate Speed |
12m/min |
12m/min |
| Motor Speed |
1400r/min |
1400r/min |
| Remote Control Range |
Open space 30~90 meters |
Open space 30~90 meters |
| Temperature |
-30° C ~ +65° C |
-30° C ~ +65° C |
| Limit Switch |
Spring / Magnetic |
Spring / Magnetic |
| Noise |
≤60dB |
≤60dB |
| Protection Class |
IP 65 |
IP 65 |
Product Introduction
New Upgraded Gate Opener
Wi-Fi remote control module:Control your gate Anytime & Anywhere
Powerful Lithium-lon battery power supply.
Can be powered by solar or both solar and electric power.
Multi-Protection Design
All-Weather Resistant ShellAdditional PCB Board Protection CoverMetal Gear with Protective Paint & Cover.
Safetyis our top priority
We offer triple securitymeasures to safeguardyour life and property.
We offer triple securitymeasures to safeguardyour life and property.
⚙️【Powerful, Safe, Smooth Operation】- The sliding gate opener features a strong 280W motor, easily lifting gates up to 1400lb. For safety, it includes an infrared sensor that stops and reverses the gate if obstacles are detected. The durable rack-driven system (13.12ft racks included) ensures smooth, quiet operation (<45dB), and the weatherproof design works in temperatures from -25.
⚙️【Upgraded Backup Battery】- Equipped with a powerful DC24V built-in lithium-ion battery, this slide gate motor offers extended operation during power outages. It delivers reliable backup power, ensuring smooth functionality for up to 3 days on a full charge without external power sources, giving you peace of mind in any situation. NOTE: When testing the motor, please connect it to either solar power or AC110V/AC220V.

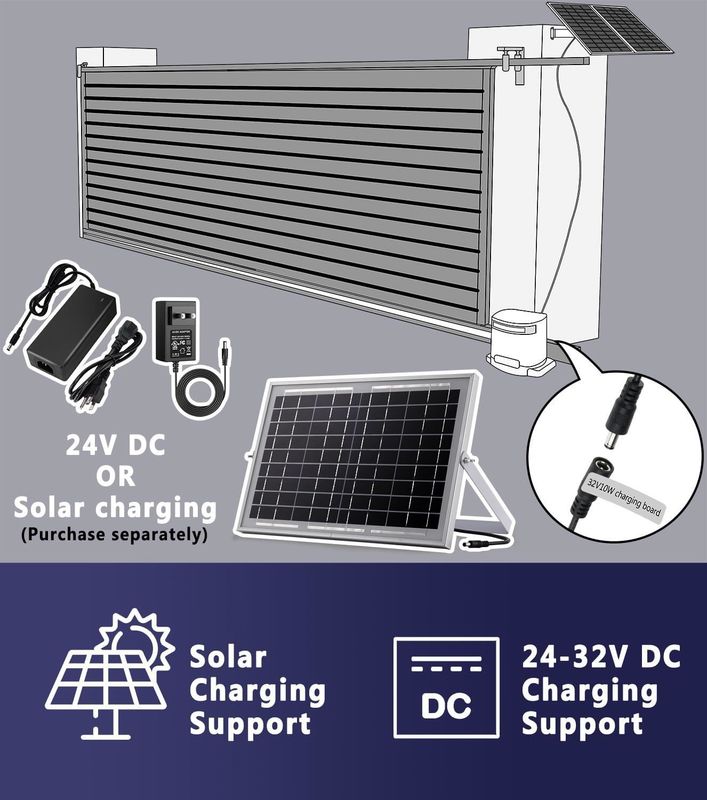

⚙️【Solar Power Support】- The gate opener can be powered by either AC110V/220V or the included 32V solar panel, offering a sustainable and cost-effective solution. With plug-and-play solar power, simply connect the panel to the motor for easy installation-no additional wiring required. Enjoy a sustainable, eco-friendly solution for seamless operation.
LED Status Indicator
Stay informed with the LED light status feature on our gate opener, providing clear indication of opening and closing status at a glance.
Sturdy Rack-Driven
Enjoy quiet gate operation ≤45dB with our rack-driven system, offering a serene environment & clean view, ensuring durability and lasting performance.
Manual Release Key
Use the included hex wrench and manual key to open the clutch, allowing for convenient testing and safe manual operation of the gate.
Application Scenarios
All kinds of sliding gates can be used
Suitable for all hotels, factories, schools, private homes, and public units.
Single sliding gate or Double sliding gate.
Our advantages
Customization capability:
1: Produce sample images within 1 hour;
2: Customized orders will be shipped within 3-7 days;
3: Bulk customization: 20-30 days for shipping, supporting factory inspection;
4: Support customization of functions;
Fast shipping capability:
1: 1-3 day fast shipping capability:
1) If payment is made between 8:00-12:00am China time, it will be shipped on the same day or the next day;
2) If payment is made between 13:00-24:00 China time, shipment will be made on the second or third day;
After sales guarantee
1: High standard service: Our company has always maintained a 5-star rating service;
2: The warranty period is 1 year, during which spare parts will be replaced free of charge;
3: A professional after-sales service team will immediately provide follow-up services after the transaction: ensuring timely updates of goods transportation information, professional technical guidance for on-site installation, and CEO online supervision of the after-sales team's service progress and standards.
