DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support

DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support
DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support

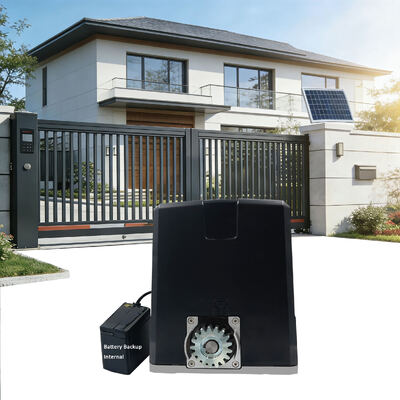

Large Image :  DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: BLB1000
Document: BLB Brushless Instruction M...al.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 140-175USD
Packaging Details: 34*28*42cm
Delivery Time: 2-8days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10000PCS/Month
Contact Now Chat Now

DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support

Description
Color: Black Maximum Door Weight: 1000KG
Rated Power: 200W Door Speed: 7-15m/min
Input Voltage: 110V/220V Output Voltage: DC24V
Power Lithium Battery: 5Ah/10Ah Built-in Motor Speed: 2100rpm
Limit Switch: Full-area Electronic Limit Switch Operating Decibels: ≤ 53 DB

DC 24V Maintenance-Free Brushless Gate Motor Adjustable Speed Solar Sliding Gate Operator With Electric Limit Support Battery
Electric Gate Operator - All-Round Performance, Smart & Reliable
  • All-round electric limit - one-time travel learning: Factory reset with no travel data: gate moves only via jog commands. After one learning cycle, the gate remembers limit positions even after power outages or manual movement - no re-learning required.
  • Adjustable motor running speed: Use the speed potentiometer to increase or decrease the normal gate speed.
  • Auto-close function: Adjustable delay from 1 to 250 seconds to fit your needs.
  • Soft start & soft stop:
    • Slow speed adjustable via potentiometer (slowdown running speed)
    • Slowdown distance adjustable via potentiometer (slowdown travel length)
  • Obstacle reversal: Automatically reverses if hit or blocked during closing; automatically rebounds if hit during opening.
  • Rich external interfaces: Supports warning lights, access control systems, solar panels, backup batteries, facial recognition, wall switches, and infrared anti-pinch devices.
  • One-key Internet gate control integration: Directly pair with Internet controllers/cameras - no extra wiring needed.
Technical Specifications
Model BLB1000 BLB1500 BLB2000 BLBH-18M BLBH-24M BLBH-36M
Maximum Door Weight 1000KG 1500KG 2000KG 1000KG
Rated Power 200W 300W 400W 300W
Door Speed 7-15m/min 7-18m/min 12-24m/min 18-36m/min
Input Voltage 110V/220V 110V/220V 10V/220V 10V/220V 10V/220V 10V/220V
Output Voltage DC24V DC24V DC24V DC24V DC24V DC24V
Power Lithium Battery 5Ah/10Ah Built-in 5Ah/10Ah Built-in 10Ah Built-in 5Ah/10Ah Built-in
Lead-Acid Battery 2.6Ah Built-in 5Ah external / 5Ah external
Motor Speed 2100rpm 2800rpm 3700rpm 5500rpm
Limit Switch Full-area electronic limit switch
Maximum Travel Limit Switch 10m 10m 15m 15m
Operating Decibels ≤ 53 dB ≤ 53 dB ≤ 53 dB ≤ 53 dB
Operating Temperature -25℃~+65℃
Protection Rating IP65 IP65 IP65 IP65 IP65 IP65
Product Introduction
Part List
  • Expansion bolt x4
  • Clutch key x1
  • Sliding gate motor x1
  • Backup fuse x1
  • Remote control x2
  • Power lithium battery x1 (optional)
Structure of Motor
DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support 0
Machine Size
DC 24V Maintenance-Free Brushless Sliding Gate Motor with Adjustable Speed and Solar Support 1
