BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection

BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection
BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection

Large Image :  BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 164
Contact Now Chat Now

BLB Series Brushless Sliding Gate Motor with Adjustable Speed DC24V Safe Low Voltage and IP65 High Protection

Description
Max Gate Weight: 1000KG / 1500KG / 2000KG Motor Type: DC Brushless Motor
Input Voltage: AC220V±10% Working Voltage: DC24V
Rated Power: 200W / 300W / 400W Operating Speed: 7-15m/min
Limit System: All-round Electric Limit Max Travel Distance: 10m / 10m / 15m
Protection Class: IP65 Noise Level: ≤53dB
Working Temperature: -30℃~+65℃ Backup Battery: Optional
Solar Panel Compatible: Supported Rotation Speed: 2100rpm
Load Speed: 7-15m/min
Highlight:

Adjustable Speed Brushless Sliding Gate Motor

,

DC24V Safe Low Voltage Automatic Gate Motor

,

IP65 High Protection BLB Series Gate Motor

BLB1000/1500/2000 Brushless Sliding Gate Motor with Adjustable Speed

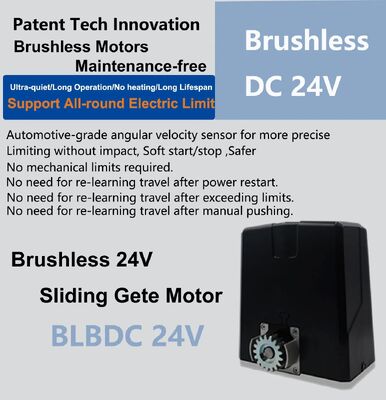

Advanced Brushless Motor Technology
The BLB Series Brushless Sliding Gate Motor incorporates cutting-edge brushless motor technology for exceptional performance and reliability in industrial and commercial applications.
  • Brushless motor design ensures ultra-long service life and maintenance-free operation
  • No heat generation with minimal power loss, capable of 24-hour continuous operation
  • DC24V safe low voltage system with backup battery and solar panel compatibility
  • Non-stop power supply during outages, compatible with lithium/lead-acid batteries
  • All-round electric limit system eliminates need for mechanical limits
  • No re-learning required after power interruption or manual operation
  • Soft start and soft stop with anti-collision and obstacle reversal protection
  • Adjustable speed, force, and slow-down distance for various gate types
  • IP65 protection rating with wide operating temperature range (-30℃ to +65℃)
  • Rich external interfaces for intelligent control system integration
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Max Travel Distance 10m 10m 15m
Noise Level ≤53dB
Product Images

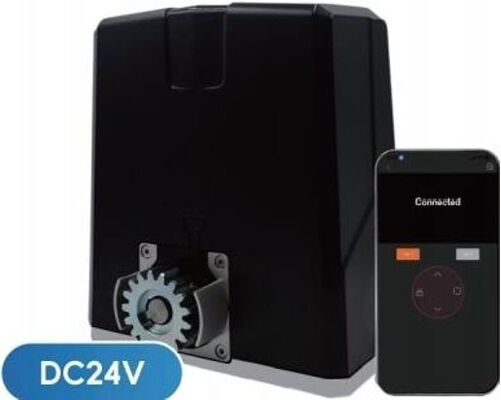

BLB Series Brushless Sliding Gate Motor overview BLB motor installation example BLB motor close-up view
Key Configurations
  • Brushless DC motor technology for maintenance-free operation
  • DC24V safe low voltage with backup battery and solar compatibility
  • All-round electric limit system requiring no mechanical components
  • Soft start and soft stop with adjustable speed and force settings
  • Advanced obstacle reversal and anti-collision protection
  • IP65 waterproof and dustproof rating for outdoor durability
  • Remote control capability with multiple external interfaces
  • CE certified with OEM/ODM customization options
Technical Elevation Views
BLB motor right elevation diagram BLB motor left elevation diagram BLB motor front elevation diagram
Detailed Specifications
Model BLB1000 BLB1500 BLB2000
Max gate weight (kg) 1000 1500 2000
Rated power 200W 300W 400W
Load speed 7-15m/min 7-15m/min 7-15m/min
Input power 110V-240V 110V-240V 110V-240V
Rotation speed 2100rpm 2100rpm 2100rpm
Noise ≤53dB ≤53dB ≤53dB
Max travel limit 10m 10m 10m
Product Detail

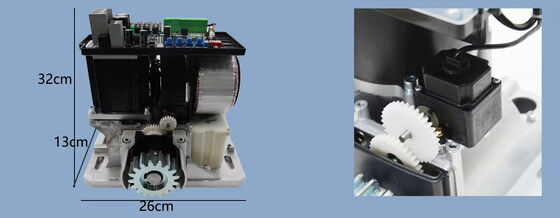

Detailed view of BLB motor components
After Sales Service
Standard Warranty: 18 months
Extended Warranty: Optional coverage up to 24 months
Global Support: 24/7 technical assistance and spare parts supply
Training: Remote operation and maintenance training
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment facility
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions. Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg. We hold numerous patents, including a globally unique electronic limit switch, and provide comprehensive OEM/ODM services.
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets of each product type available in neutral packaging without branding.
What is the delivery time?
Shipment occurs on the same day or next day after payment receipt.
What customization options are available?
Product logo customization available for orders of 20+ sets. Outer packaging customization available for orders of 100+ sets.
What after-sales service is provided?
Most products include a one-year warranty from receipt date. Free accessories provided during warranty period (excluding shipping). Comprehensive technical support included.
