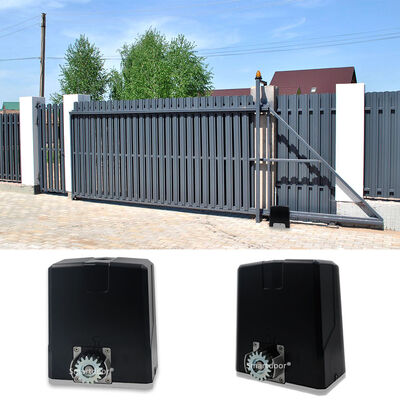

DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates

DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates
DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates

Large Image :  DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 187
Contact Now Chat Now

DC24V Brushless Sliding Gate Motor with Adjustable Speed for 1000-2000kg Gates

Description
Limit System: All-Round Electric Limit Structure: Wheeled
Speed: 7-15m/Min Protection Class: IP65
Fuse: 30A Relative Humidity: <60%
Rated Power: 200W Gate Weight: 1000kg-2000kg
Electric Current Type: DC Remote Control Range: Open Space 30-90 Meters
Specification: 34*27*40cm Motherboard Working Voltage: AC/DC 24V±10%
Driving Type: Electromechanical Max Travel Limit: 1-10m
Working Temperature: -30℃ -+70℃
Highlight:

Adjustable Speed Sliding Gate Motor

,

DC24V Automatic Gate Motor

,

1000-2000kg Capacity Gate Opener

DC24V Brushless Sliding Gate Motor
High-performance brushless sliding gate motor designed for gates weighing 1000-2000kg, featuring adjustable speed control and comprehensive safety protections.
Key Features
Adjustable Motor Speed: Easily adjust operating speed (7-15 m/min) via built-in speed potentiometer. Clockwise rotation increases speed, counter-clockwise decreases speed. Flexible control suits different door weights and application scenarios.
All-Around Electric Limit Switch: Single-stroke learning cycle permanently memorizes limit positions. No relearning required after power failure or manual movement.
Soft Start and Soft Stop: Smooth acceleration and deceleration with adjustable deceleration distance (10-80 cm) and speed. Reduces mechanical wear for long-term reliability.
Obstacle Reversal Protection: Automatically detects obstacles during operation with audible alerts and automatic reversal for enhanced safety.
Automatic Closing Function: Adjustable delay time (1-250 seconds) for automatic closure after opening - ideal for contactless operation requirements.
Abundant External Interfaces: Compatible with infrared sensors, license plate recognition, access control systems, alarm lights, solar panels, and backup batteries.
Low-Voltage DC 24V Operation: Safe low-voltage operation with AC 220V input. Ensures personal safety during installation and maintenance.
High Durability and Protection: IP65 weatherproof rating, operating temperature -30ºC to +70ºC, noise level <53 dB, brushless motor for longer service life.
Multiple Built-in Protections: Motor overcurrent, overload, short circuit, motor failure, and reverse power supply protection.
Easy Installation and Commissioning: Clear wiring diagrams, manual clutch release, and simple remote control pairing for quick setup.
Technical Specifications
Parameter BLB-1000 BLB-1500 BLB-2000
Max Gate Weight 1000 kg 1500 kg 2000 kg
Max Travel Limit 1-10 m 1-10 m 1-10 m
Rated Power 200W 300W 400W
Speed 7-15 m/min (Adjustable) 7-15 m/min (Adjustable) 7-15 m/min (Adjustable)
Input Voltage AC220V±10% AC220V±10% AC220V±10%
Working Temp -30ºC ~ +70ºC -30ºC ~ +70ºC -30ºC ~ +70ºC
Protection Class IP65 IP65 IP65
Noise <53 dB <53 dB <53 dB
