Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse

Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse
Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse

Large Image :  Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 169
Contact Now Chat Now

Solar Energy Compatible DC Brushless Motor Automatic Gate Opener with 1000kg Load Capacity for Garage & Warehouse

Description
Rated Power: 130W Noise Level: ≤50db
Dimensions: 34*27*40cm Input Power: AC220V/110V±10%
Working Temp: -30℃~+65℃ Electric Current: DC
Limit Switch: Spring Limit/Magnetic Limit Load Speed: 7-15m/Min
Max Gate Weight: 800kg/1000kg/1500kg/2000kg/2500kg Output Power: DC24V
IP Class: IP55 Motor Power: 200 W / 300 W / 400 W
Battery Type: Power Lithium Batteries Motor Speed: 2100 Rpm
Protection Class: IP65
Highlight:

1000kg Load Capacity Automatic Gate Motor

,

DC Brushless Motor Gate Door Opener

,

Solar Energy Compatible Electric Gate Opener

Solar Electric DC Brushless Motor Gate Door Opener with 1000kg Load Capacity

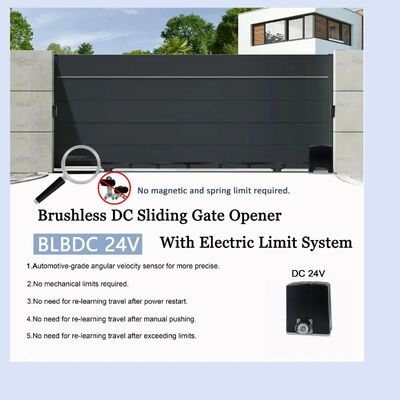

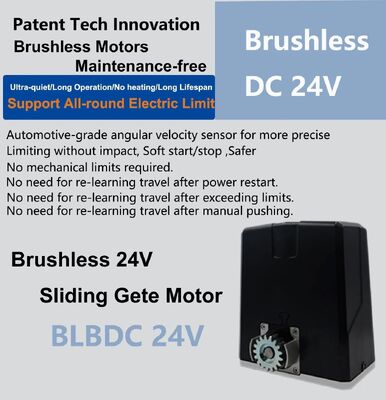

Premium 24V BLDC brushless motor gate opener designed for garage and warehouse applications with 1000kg load capacity.
Solar Electric DC Brushless Motor Gate Opener
Key Features
  • Premium 24V BLDC Brushless Motor enables 24-hour continuous operation with zero overheating
  • Ultra-quiet running performance with extremely low mechanical loss
  • Nearly maintenance-free design for long-term use
  • Intelligent Power Failure Memory System automatically identifies gate position after power cuts
  • No re-calibration or manual reset required after power restoration
  • Full-range Electronic Limit Control eliminates wear and failure problems of mechanical switches
  • Safe low voltage DC24V design with built-in backup lithium battery
  • Ensures normal operation during power outages for 24/7 access control
  • Highly adjustable running speed (7 to 15 meters per minute)
  • Perfectly adapts to sliding gates and suspended gates
  • Solar energy compatible with low power consumption design
  • Eco-friendly and cost-effective for remote villa and industrial applications
Gate Opener Installation Example Gate Opener Technical Details
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Load Capacity 1000 KG 1500 KG 2000 KG
Motor Power 200 W 300 W 400 W
Door Speed 7-15 m/min (adjustable)
Input Voltage AC220V 50Hz / AC110V 60Hz
Output Voltage DC 24V
Battery Type Power lithium batteries
Limit Position Full-range electronic limit
Operating Temperature -25°C ~ +65°C
Motor Speed 2100 rpm
Noise Level ≤ 53 dB
Protection Class IP65

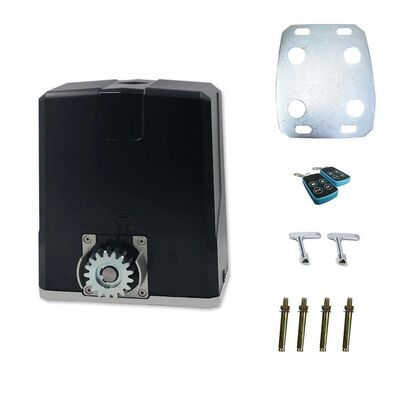

Gate Opener Construction Details Gate Opener Components
Construction Features
  • Aluminum alloy shell - Strictly selected aluminum materials for high-quality products
  • Rust-proof stainless steel gear - Durable, rust resistant, and corrosion-resistant
  • Reserve power supply - Backup power available after power outages
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment Facility Sichuan Duoxiang Intelligent Equipment Company
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.
We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications.
These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch.
Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities. We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.
Duoxiang Product Range Duoxiang Manufacturing Process
Frequently Asked Questions
Is there any inventory available?
  • Having sufficient inventory
  • 100 sets of inventory for each type of product
  • Inventory products are in neutral packaging without brand
Delivery Time
Ship on the same day or the next day after receiving payment
Customized Content
  • Product logo customization: Free for orders of 20+ sets
  • Customization of outer packaging: Free for orders of 100+ sets
After-Sales Service
  • Most products have a one-year warranty period from receipt of goods
  • Free accessories provided during warranty period (excluding shipping costs)
  • Free technical support provided
