Automatic DC Brushless Door Opener with 250KG Max Loading Weight and Adjustable Open/Close Speed for Swing Gates

Description
Product Name: Automatic Door Opener Keyword: Wifi Swing Gate Opener
Max Loading Weight: 250KG Usage: Swing Door :Width 1800mm
Open(close) Speed: Adjustable Open Style: Electric Automatic Opening
Output Torque: 90N.m Remote Control Frequency: 430Mhz
Operating Temperature: -35°℃-85°℃ Shell Material: Alloy Steel Plate

Automatic DC Brushless Door Opener with Bearing 250KG Swinging Horizontal Door Opener Gate Operators
Engineered for durability and intelligent control, the K5 Heavy-Duty Horizontal Swing Gate Opener is a premium solution for automating large, heavy gates. It combines robust safety features with advanced programmability to deliver smooth, quiet, and reliable operation for both residential and commercial applications.
Key Features
  • Ultra-Safe & Energy-Efficient: Powered by safe 24V DC power supply with ultra-low standby power consumption under 1W
  • Intelligent & Programmable: Independent adjustment of opening/closing speeds with multi-stage speed control
  • Comprehensive Protection: Motor overload, overcurrent, short circuit, and reverse polarity protection with obstacle detection
  • Versatile Compatibility: Supports single, double, and master/slave gate configurations
  • All-Weather Reliability: Operating temperature range of -35°C to 85°C with IPX4 water resistance
Technical Specifications
Model K5 Heavy-Duty Horizontal Swing Gate Opener
Input Voltage AC 220V ± 50Hz
Motor Voltage DC 24V
Motor Power 60W
Power Supply 160W
Operating Temperature -35°C to 85°C
Waterproof Rating IPX4
Remote Control Frequency 430MHz
Unit Dimensions (Body) 224 × 130 × 116 mm
Arm Length 335 mm
Total Weight 8.7 kg

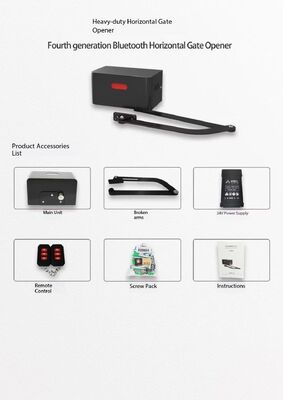

Included Components Opener Body, Upper & Lower Door Clamps, Main Control Board, 2x Remote Controls, Mounting Screw Kit, Warranty Card, Manual
Product Advantages
Superior Safety: 24V DC power supply eliminates electric shock risk with integrated pedestrian protection and obstacle detection
Enhanced Durability: Robust motor construction designed for heavy-duty use in extreme climate conditions
Silent & Smooth Operation: Multi-stage speed control with operational noise below 50dB for quiet performance
Advanced Control & Customization: Extensive parameter control for speed, angle, and force with anti-blowback function
Smart Maintenance & Troubleshooting: LCD screen displays real-time status and error codes with one-key reset function
