Remote Control Automatic Horizontal Door Opener For Various Swing Doors In Hospitals

Product Name: Top mounted Horizontal Door Opener
Product load-bearing capacity:
The maximum weight should not exceed 180KG (with a door width of less than 0.5 meters), and the maximum width can accommodate a door of 1.5 meters (with a door weight of less than 50KG). The wider the door, the greater the resistance, and the motor can carry less weight.
Product Features:
1. Bluetooth debugging, easier to get started with
2. Unique zipper switch function, making the double door linkage more stable.
3. Unique collision correction function to solve the problem of door collision position deviation.
4.360mm ultra short body, suitable for installation in more door sizes.
5. Comes with an adapter base plate, suitable for various installation environments.
6. The new slide is more securely and conveniently fixed, with screws that are not exposed and look more beautiful.
7. EU CE certification, Rohs certification: CMA certification.
Product Features:
1. Adjustable switch speed
2. Adjustment of rebound when encountering obstacles
3. Door opening delay adjustment
4. Learning the angle of opening the door
5. Delayed door opening function, remote door locking function, dual door linkage function, mother and child door function
6. Support human body sensing
7. Support electronic control lock
8. Supports Bluetooth adjustment
9. Rich extension interfaces
Specification parameters:
Body size: 350 × 83 × 133mm
Packaging size: 535 × 185 × 125mm
Fixed base size: 350 × 83mm
Slide length: 500mm
Slide arm: 330mm
Body weight: ± 5.1KG
Motor torque: 80N. m
Working voltage: 24V
Motor power: 30W
Input voltage: 220V
Motor speed: 1800Rpm
Remote control frequency: 430MHz
Application scope:
The overhead horizontal door opener is designed for automatic control of internal and external opening of single or double leaf swing doors, KFC doors, aluminum alloy doors, fire doors, wooden doors, etc. It can be automatically controlled by access control devices, facial recognition devices, mobile phone remote devices, etc.

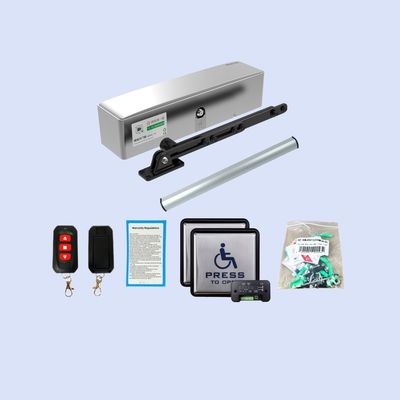

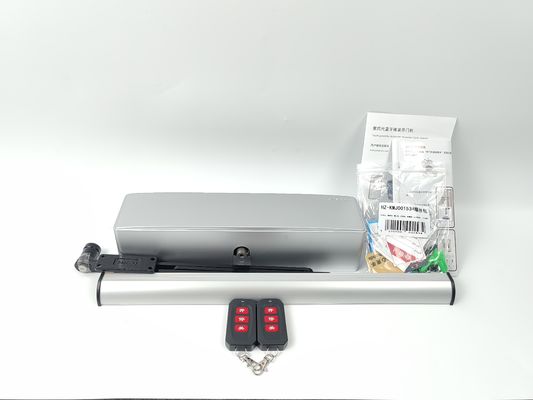

Overall accessories:
1 machine body, 1 set of push arm, 1 set of pull arm track, 1 remote control, 2 instruction manuals, 1 Bluetooth debugging manual, 1 screw kit, 1 package
