Horizontal door opener
The H5 side mounted door opener is designed for automatic control of internal and external opening of single or double leaf swing doors, KFC doors, aluminum alloy doors, fire doors, wooden doors, etc. It can be automatically controlled by access control devices, facial recognition devices, mobile phones, and other devices.

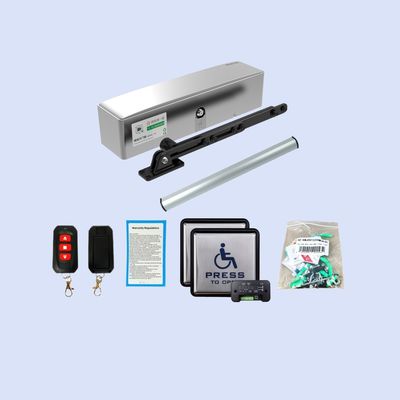

Accessories and Instructions
1. Extended chassis package: suitable for installation in small-sized positions
2 instruction manual package: instruction manual, certificate of conformity
3 Fixed chassis quick wire package: suitable for fixing materials of wooden doors and cement walls
4. Fixed chassis dovetail wire package: suitable for metal fixing materials
5 Maintenance Tool Screw Pack: Essential screws for the machine body, screwdriver, wrench, lubricant, terminal wire
Product specifications and electrical information
Body size: 350 × 83 × 133mm
Packaging size: 535 × 185 × 125mm
Fixed base size: 350 × 83mm
Slide length: 500mm
Slide arm: 330mm
Body weight: ± 5.1KG
Motor torque: 80N. m
Working voltage: 24V
Motor power: 30W
Input voltage: 220V
Motor speed: 1800Rpm
Remote control frequency: 430MHz

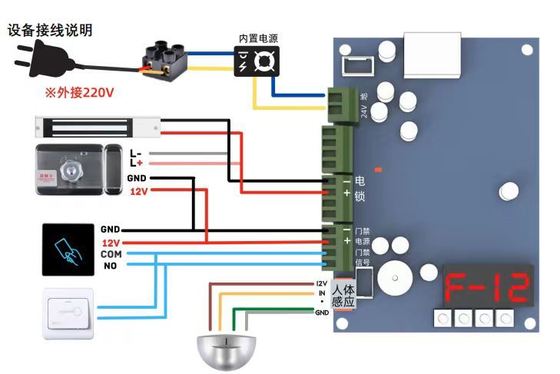

Equipment wiring instructions
Product Advantages:
Safety: Powered by a 24V DC power supply, ensuring personal safety.
Energy saving: Static power less than 1 watt, maximum power during operation 60W；
Adjustable speed: Independent adjustment of door opening and closing speed.
Smooth work: Multi stage speed design ensures a linear and stable working state.
Quiet: Work noise below 50dB；
Supports multiple signal inputs, relay signals, voltage signals；
Multiple protection: motor overcurrent, overload, short circuit protection, motor fault protection, power reverse connection protection；
Pedestrian protection: rebound in case of obstruction and collision prevention function;
Support external remote control input;
Supports multiple types of doors, including single door, double door, and mother and child door;
Supports 485 communication and enables simultaneous opening and closing of two door
