Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety

Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety
Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety
Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety

Large Image :  Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety

Product Details:
Place of Origin: CHINA
Certification: CE ROHS
Model Number: H5
Document: K2User Manual.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 95USD-110USD
Packaging Details: 54*19*13cm
Delivery Time: 1-7Days
Payment Terms: D/A,D/P,T/T,Western Union
Supply Ability: Unlimited
Contact Now Chat Now

Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety

Description
Maxdoorweight: 180 Kg Service: Online Technical Support
Noiselevel: < 45 DB Controlmethod: Remote Control / Push Button
Motor Type: DC Remote Control: Included
Max Bearing: 180kg Safety Features: Infrared Sensor, Emergency Stop Button
Operatingvoltage: 24V DC Installationtype: Horizontal Mount
Highlight:

180kg Max Door Weight Electric Door Closer

,

24V DC Brushless Motor Horizontal Door Opener

,

Infrared Sensor Safety Automatic Swing Door Opener

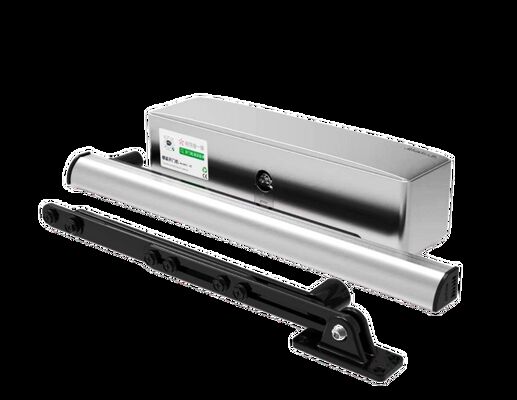

Electric Door Closer - Horizontal Top Mount for Swing Doors
The H5 horizontally mounted overhead door opener is a powerful automated access control solution that utilizes upward suspension and lateral traction to eliminate ground space occupation. This system provides reliable driving force and enhanced safety, making it ideal for various types of sliding doors including indoor doors, fire doors, wooden doors, iron doors, and aluminum alloy doors with beams or surrounding walls.
Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety 0
Key Features
  • Easy Bluetooth Debugging: Quick setup and configuration via Bluetooth for user-friendly operation
  • Intelligent Linkage Control: Zipper-style switching ensures stable synchronization of double doors
  • Collision Correction: Automatic adjustment for misalignment caused by impacts
  • Compact Design: Ultra-short 360mm body for compatibility with limited spaces
  • Universal Adapter Plate: Flexible installation in various environments
  • Secure Slide Rail: Concealed screws for clean, modern appearance
  • Authoritative Certifications: Complies with EU CE, RoHS, and CMA standards
Technical Specifications
Parameter Specification
Input Voltage 24V
Power Supply 30W
Control Interface COM/NO Dry Contact
Remote Control Frequency 430MHz
Static Power Consumption ≈ 1W
Motor Speed 1800RPM
Reduction Ratio 1:200
Output Torque 80N·m
Motor Shaft Diameter φ 16mm
Motor Type DC Brushless Motor
Bluetooth Specification BLE Low-Power Bluetooth
Electric Lock Port Output Current 1.2A (supports 2×280KG magnetic locks)
Working Temperature -35℃ to 85℃
Access Control Port Output Current 0.8A (face recognition device requires separate power supply)
Operating Humidity 30% to 80% (no condensation)
Remote Control Distance ≈ 15M (interference-free state)
Door Opening/Closing Speed Adjustable from 3-6 seconds
Durability 1 million+ cycles
Waterproof Rating IPX4 (waterproof and splash proof)
Physical Specifications
Component Dimension
Body Size 362 × 87 × 85mm
Shell Material Alloy Plastic
Slide Length 500mm
Folding Arm Size 250mm
Sliding Rod Length 240-340mm
Slide Arm 330mm
Outer Packaging Size 535 × 185 × 125mm
Total Weight 4.4kg

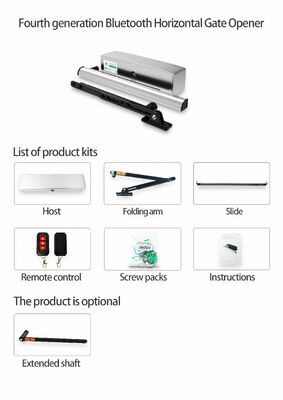

Package Contents
Item Quantity
Door Opener Body 1 set
Arm Bag 1 set
Screw Package 1 set
Warranty Card 1 card
Instruction Manual 1 copy
Remote Control 2 pieces
Installation & Configuration

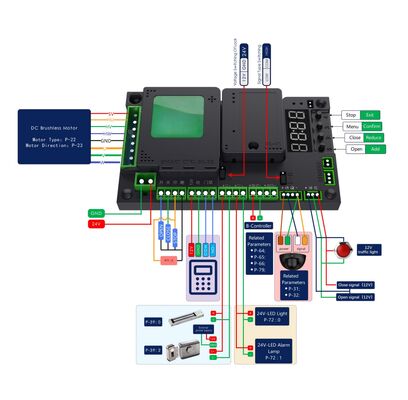

Controller Wiring and Port Definition
Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety 1
Door Opening Parameter Adjustment Process
Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety 2 Electric Door Closer with 180kg Max Door Weight and 24V DC Brushless Motor for Automatic Swing Doors with Infrared Sensor Safety 3
