BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup

BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup
BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup

Large Image :  BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 164
Contact Now Chat Now

BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with 2000KG Capacity and Lithium Battery Backup

Description
Model: BLB1000 / BLB1500 / BLB2000 Max Gate Weight: 1000KG / 1500KG / 2000KG
Motor Type: DC Brushless Motor Input Voltage: AC220V±10%
Working Voltage: DC24V Rated Power: 200W / 300W / 400W
Operating Speed: 7-15m/min Limit System: All-round Electric Limit
Max Travel Distance: 10m / 10m / 15m Protection Class: IP65
Noise Level: ≤53dB Working Temperature: -30℃~+65℃
Backup Battery: Optional Solar Panel Compatible: Supported
Rotation Speed: 2100rpm
Highlight:

IP65 Waterproof Sliding Gate Motor

,

2000KG Max Gate Weight Automatic Gate Motor

,

Lithium Battery Backup Brushless DC Motor

BLB2000 Brushless DC Sliding Gate Motor IP65 Waterproof with Lithium Battery
Advanced brushless DC sliding gate motor featuring IP65 waterproof rating and lithium battery compatibility for reliable outdoor operation.
Key Advantages
  • Brushless motor technology for ultra-long service life and maintenance-free operation
  • No heat generation with low loss, capable of 24-hour continuous operation
  • DC24V safe low voltage with backup battery and solar panel compatibility
  • Non-stop power supply during outages, suitable for off-grid and emergency use
  • All-round electric limit system eliminates mechanical limits and simplifies commissioning
  • No re-learning required after power interruption or manual operation
  • Soft start & soft stop with anti-collision and obstacle reversal protection
  • Adjustable speed, force, and slow-down distance for various gate types
  • IP65 protection rating with wide working temperature range (-30℃ to +65℃)
  • Rich external interfaces for intelligent control system integration
Product Specifications
Specification BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Limit System All-round Electric Limit
Max Travel Distance 10m 10m 15m
Protection Class IP65
Noise Level ≤53dB
Working Temperature -30℃~+65℃
Backup Battery Optional
Solar Panel Compatible Supported
Certification CE Certified
Product Images

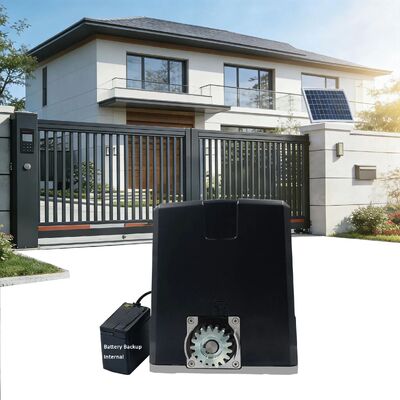

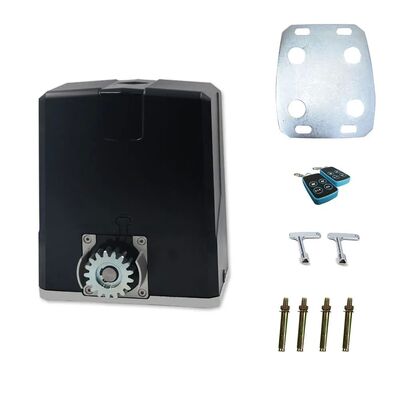

BLB Series Brushless Sliding Gate Motor overview BLB Series motor installation example BLB Series motor close-up view
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Max gate weight (kg) 1000 1500 2000
Rated power 200W 300W 400W
Load speed 7-15m/min 7-15m/min 7-15m/min
Input power 110V-240V 110V-240V 110V-240V
Rotation speed 2100rpm 2100rpm 2100rpm
Noise ≤53dB ≤53dB ≤53dB
Max travel limit 10m 10m 10m
Product Elevation Views
BLB Series motor right elevation BLB Series motor left elevation BLB Series motor front elevation
Detailed Product Image
Detailed view of BLB Series motor components
After Sales Service
Warranty Coverage
Standard Warranty: 18 months
Extended Warranty: Optional coverage up to 24 months
Support Services
Global Support: 24/7 technical assistance and spare parts supply
Training: Remote operation and maintenance training provided
Manufacturer Information

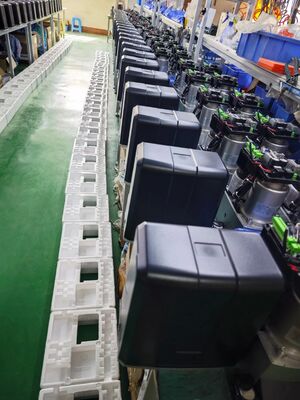

Sichuan Duoxiang Intelligent Equipment Company facility
Sichuan Duoxiang Intelligent Equipment Co., Ltd.
Technology-based enterprise with independent R&D and production capabilities specializing in access control systems and smartphone access control solutions. Decades of experience in developing high-quality DC sliding door motors with load capacities from 800kg to 6500kg. Features globally unique electronic limit switch technology and holds numerous patents. Provides OEM/ODM services with commitment to quality and partner business expansion.
Frequently Asked Questions
Inventory Availability
Sufficient inventory maintained with 100 sets of each product type in neutral packaging without branding.
Delivery Time
Same day or next day shipment after payment confirmation.
Customization Options
Product logo customization available for orders of 20+ sets at no additional cost. Outer packaging customization provided free for orders of 100+ sets.
After-Sales Service
Standard one-year warranty period starting from receipt of goods. Free accessories provided during warranty period (shipping costs excluded). Comprehensive technical support included.
