High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating

High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating
High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating

Large Image :  High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 369
Contact Now Chat Now

High Security 3500kg Load Capacity DC Sliding Gate Motor with Rebound Function and IP55 Rating

Description
IP Class: IP55 Driving Type: Electromechanical
Load Speed: 15m/Min Load Capacity: 3500kg
Specification: 50*42*28cm Rated Power: 450W
Electric Current: DC Output Power: DC36V
Input Power: AC220V/110V±10% Noise Level: ≤50db
Limit Switch: Spring Limit/Magnetic Limit Working Temp: -30℃~+65℃
Max Gate Weight: 3500KG Heat Emission: Low
Model NO.: BG3500
Highlight:

3500kg Load Capacity Sliding Gate Motor

,

Rebound Function Automatic Gate Motor

,

IP55 Rated DC Gate Motor

High Security Industrial DC Sliding Gate Motor with Rebound
Advanced DC sliding gate motor engineered for industrial security applications with intelligent safety features and robust performance.
High security industrial DC sliding gate motor installation
Key Features & Safety Functions
  • Soft start and stop operation for smooth gate movement
  • Pedestrian access mode for enhanced safety
  • Automatic rebound upon obstacle detection
  • Anti-collision design with automatic door closing
  • Bi-directional opening with flexible direction settings
  • Double-click linking capability for coordinated operation
  • Multiple interface support for infrared sensors, license plate recognition, access control systems, and lights
  • Smart door APP operation via optional WiFi controllers
  • Low heat emission design suitable for frequent use scenarios

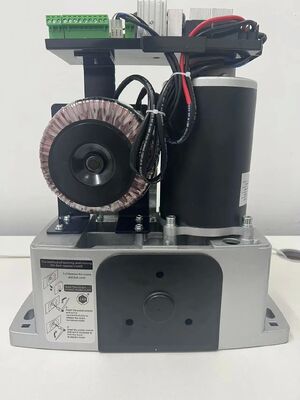

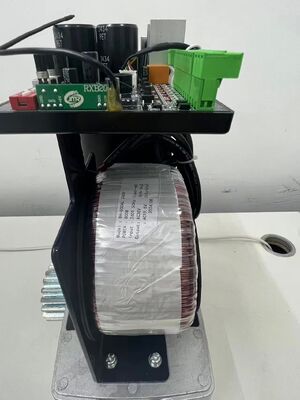

DC sliding gate motor internal components Industrial gate motor installation example
Technical Specifications
Model BG3500 BG4500 BG6000
Max Gate Weight 3500KG 4500KG 6000KG
Rated Power 450W 600W 800W
Load Speed 15m/min
Input Power AC220V/110V±10%
Output Power DC36V
Limit Switch Spring Limit / Magnetic Limit
Noise Level ≤50dB
Working Temperature -30℃ ~ +65℃
IP Class IP55
Packaging & Delivery
Gate motor packaging Product delivery process
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment facility Company manufacturing process
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the research, development, and production of access control systems and smartphone access control systems.
We have developed a comprehensive series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for both residential and industrial applications. Our product line includes standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall reliability.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents, including a globally unique electronic limit switch. Our products are distributed both domestically and internationally and receive high praise from users worldwide. We maintain an independent R&D team with strong technical capabilities and provide comprehensive OEM/ODM services, committed to delivering high-quality products that help partners expand their businesses and assist users in achieving smarter security solutions.
Quality control and testing process Final product showcase
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets available for each product type. Inventory products come in neutral packaging without branding.
What is the delivery time?
We ship on the same day or the next day after receiving payment.
What customization options are available?
Product logo customization: Free for orders of 20+ sets
Outer packaging customization: Free for orders of 100+ sets
What is the after-sales service policy?
Most products include a one-year warranty period starting from receipt of goods
Free accessories provided during warranty period (excluding shipping costs)
Comprehensive technical support provided free of charge
