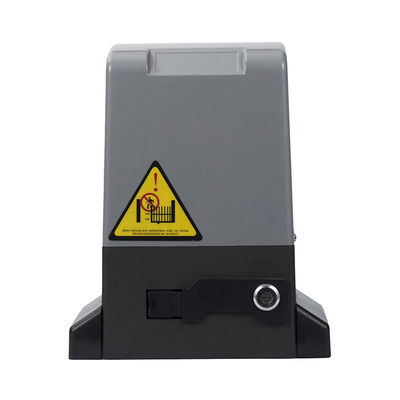

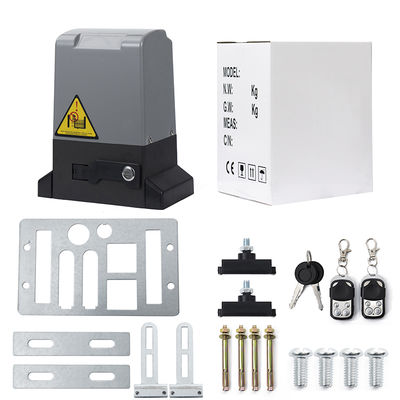

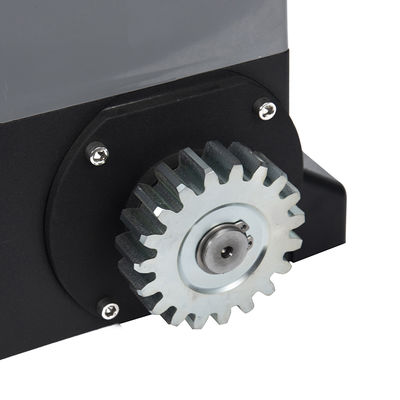

370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors

370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors
370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors
370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors 370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors 370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors 370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors

Large Image :  370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors

Product Details:
Place of Origin: China
Certification: CE UKCA
Model Number: MD550W
Document: 220V Green Control Board Ma...sh.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 72-130USD
Packaging Details: 32*26*39cm
Delivery Time: 1-7DAYS
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Unlimited quantity
Contact Now Chat Now

370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors

Description
Frequency: 50Hz/60Hz Max. Gate Weight: 1200kg
Remote Control: Yes Voltage: 220V/110V
Power Supply: AC Manual Release: Yes
Operating Speed: 12m/min Max. Gate Length: 12m
Model: MD550 Max. Load Capacity: 1200kg
Automatic Closing: Yes Motor Power: 550W
Highlight:

550W automatic gate opening motor

,

1200W automatic gate opening motor

,

370W automatic gate openers residential

Sliding Gate Motor Is Suitable For Villa Doors That Can Be Remotely Controlled To Open Via WiFi



Sliding Gate Motor

First of all thank you for choose the remote control door machine !
security protection
Must use 110V-240V power supply voltagedo not use the overpressure or under voltage:The door installation or maintenance, please first cut offthe input power supply,Please make sure to open the door machine has reliable grounding, groundingresistance < 4 m, and have leakage short circuit protectionOrbit by an appropriate location, the door machine side should firmly welding alimit block iron, iron block should be beyond the limits ofelectrical limit place, canblock on both sides to walk round the body not to take offFrom the roller constraintsis advisable, in case ofelectrical limit failure when the gate from the constraints ofthe idler pulley on both sides cause tilting;
Before starting the door, should remove obstacles;The door is operation, it is strictlyprohibited to vehicles, pedestrians walking;6The remote controller to avoid children to play, and the control box ofswitch;Cannot disassembly motor by oneself, maintenance work should be conducted byprofessionals
main technical parameters
Supply power: AC110V/60HZ-240v/50HZ :Starting current 3A
running speed: 12m/min
Motor power:370W/550W/750W/1200WMotor speed : 1400r/min
Suitable door weight:100-2000KG6.
Temperature :-25℃~+:70℃ ;8,Motor net weight : 12.2kg/12.8kg/14.5kg/16.2kg9Reserved line installation :1 square milimeter (or 1.$ square meter with two conduetor)

Product parameter table

Model MD280 MD370 MD550 MD750 MD1200 MD1500
Capacity 600KG 800KG 1200KG 1800KG 2200KG 2500KG
Input Voltage AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10%
Output Voltage AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10%
Rated Power 280W 370W 550W 750W 1200W 1500W
Gate Speed 12m/min 12m/min 12m/min 12m/min 12m/min 12m/min
Motor Speed 1400r/min 1400r/min 1400r/min 1400r/min 1400r/min 1400r/min
Remote Control Range Open space 30~90 meters Open space 30~90 meters Open space 30~90 meters Open space 30~90 meters Open space 30~90 meters Open space 30~90 meters
Temperature -30° C ~ +65° C -30° C ~ +65° C -30° C ~ +65° C -30° C ~ +65° C -30° C ~ +65° C -30° C ~ +65° C
Limit Switch Spring / Magnetic Spring / Magnetic Spring / Magnetic Spring / Magnetic Spring / Magnetic Spring / Magnetic
Noise ≤60dB ≤60dB ≤60dB ≤60dB ≤60dB ≤60dB
Protection Class IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
 370W 550W 750W 1200W Automatic Gate Opening Motor 1400r/Min For Villa Doors 0

Whether it's hot summer or cold winter, you can easily open the door in the car through the remote control.
The remote control adopts scrolling code technology, which is safer.

Our advantages

Customization capability:
1: Produce sample images within 1 hour;
2: Customized orders will be shipped within 3-7 days;
3: Bulk customization: 20-30 days for shipping, supporting factory inspection;
4: Support customization of functions;
Fast shipping capability:
1: 1-3 day fast shipping capability:
1) If payment is made between 8:00-12:00am China time, it will be shipped on the same day or the next day;
2) If payment is made between 13:00-24:00 China time, shipment will be made on the second or third day;
After sales guarantee
1: High standard service: Our company has always maintained a 5-star rating service;
2: The warranty period is 1 year, during which spare parts will be replaced free of charge;
3: A professional after-sales service team will immediately provide follow-up services after the transaction: ensuring timely updates of goods transportation information, professional technical guidance for on-site installation, and CEO online supervision of the after-sales team's service progress and standards.

e-mail address: wsjsales001@gmail.com
whatsapp:+8613214430229
Phone:+8613214430229
