Sliding Gate Opener Is Suitable For Villa Doors That Can Be Remotely Controlled To Open Via WiFi
一 , brief introduction

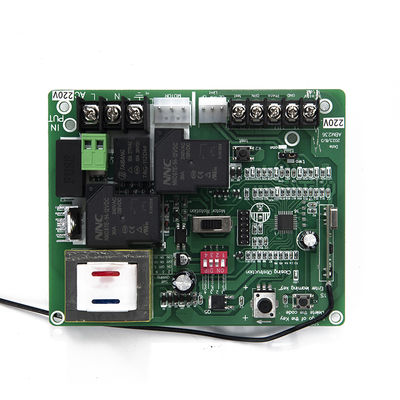

The controller is a relatively advanced high-tech product in the door control system , with beautiful appearance , simple and convenient starting torque , and multiple functions. The product works stably, is reliable and durable , and is a necessary product for moving and extending door.
二 , operation place
1 . ventilation is good , the environment temperature: - 30 ℃ to 55 ℃
2 . Avoid dampness or water immersion
3 . No corrosive gas , liquid or serious dust around .
4. There is no strong vibration or strong magnetic interference nearby o
三 , Electrical connection
1 . The connection shall be made in strict accordance with the label on the terminal , and "fire" and "zero" shall not be reversed .
2 . observe safety regulations and separate power lines and control lines .
3 . Motor enclosure must be grounded .
4 . According to the wiring diagram below, it is important to separate the power line from the control line , especially not to connect the "switch in place" control line to the motor line and power line , otherwise the controller will be damaged .

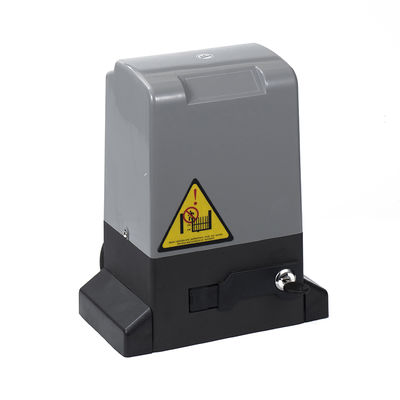

⚙️【Powerful & Heavy Duty | 110~240V 60Hz/50Hz】 - Equipped with a copper motor, this gate opener operates on AC 110~240V 60Hz/50Hz and effortlessly moves gates up to 1800lbs and 40ft in length. Its high-torque gear ensures smooth performance for both residential and commercial use.
⚙️【Secure & Safe Design】- Our sliding gate opener comes with an infrared sensor that detects obstacles, preventing accidents by automatically stopping the gate. The adjustable rebound force ensures the gate reverses upon contact with an obstruction, while over-heating protection adds another layer of security.
⚙️【Quiet & Durable Rack Drive】- With 8pcs of 13.12ft, 8mm thick solid steel gear racks, this sliding gate operator provides smooth and quiet operation (≤45dB). Its weatherproof, corrosion-resistant construction ensures long-lasting durability, operating reliably in temperatures ranging from -13°F to 131°F.
⚙️【Auto Closing & Versatile Control】- Set the auto-close timer to 5s, 10s, or 20s for automatic gate closure. This motor also supports Wi-Fi module (sold separately) for app control from anywhere. Includes 2pcs 4-key remote controls (12V 27A battery included) with a 100ft range and supports up to 40 remote codes.
⚙️【Reliable Technical Support】- Enjoy lifetime technical support for seamless installation and operation. Our team is ready to provide prompt assistance, helping you resolve any issues and optimize the performance of your gate opener.
Product parameter table
| Model |
MD280 |
MD370 |
MD550 |
MD750 |
MD1200 |
MD1500 |
| Capacity |
600KG |
800KG |
1200KG |
1800KG |
2200KG |
2500KG |
| Input Voltage |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
| Output Voltage |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
| Rated Power |
280W |
370W |
550W |
750W |
1200W |
1500W |
| Gate Speed |
12m/min |
12m/min |
12m/min |
12m/min |
12m/min |
12m/min |
| Motor Speed |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
| Remote Control Range |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
| Temperature |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
| Limit Switch |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
| Noise |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
| Protection Class |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
Usage scenario:
Villa doors, courtyard doors, industrial doors, school doors, iron doors, wooden doors, fence doors, etc
