Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator

Certification
China Sichuan Wanshijia Technology Co., Ltd certification
I'm Online Chat Now

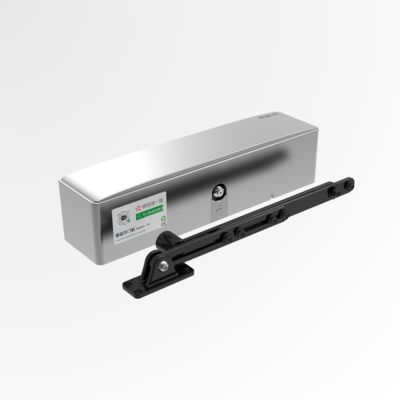

Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator

Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator
Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator

Large Image :  Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator

Product Details:
Place of Origin: China
Certification: CE Rohs
Model Number: H5
Document: instructions.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 95-140USD
Packaging Details: 535×185×125mm
Delivery Time: 1-7 DAYS
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Unlimited inventory
Contact Now Chat Now

Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator

Description
Power Voltage: AC110-250V 50-60Hz Material: Metal/Plastic
Operating Temperature: -35-+80°C Power Source: Electric
Max Door Width: 1500mm Door Leaf Width: DW=500mm-1500 Mm
Max Door Weight: 180kg Door Leaf Weight: 180KG*1 Leaf
Voltage: 110-240V Safety Features: Obstacle Detection/Reverse Function
Highlight:

110V automatic door operators

,

240V automatic door operators

,

Heavy Duty automatic swing door opener

Automatic Swing Door Opener

[Automatic door opening through disabled button] The door opener can be opened through wireless disabled button or wireless remote key, making it convenient for disabled people to enter safely

If the automatic door opener encounters an object on the closing path, it will automatically reopen the door to ensure the safety of personnel on the door. If used for disabled access, it is recommended to install an optional sports safety scanner to extend the opening time. When an obstacle is detected, it will open the swinging door in reverse.

Durable Motor: The motor adopts wide voltage technology, with an input voltage of AC100V to AC240V, which is very durable and will not easily burn out due to unstable input voltage

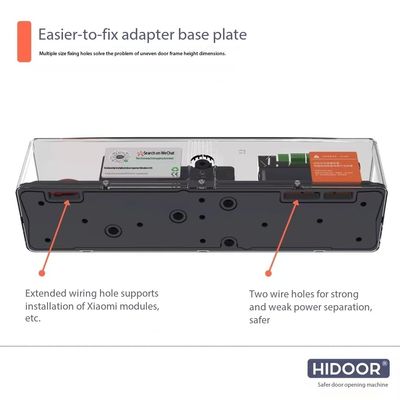

[Easy programming and debugging through control board] The parameter program can be easily adjusted through the control board of the automatic swing door, and the door can be set to remain open

[Easy to install] US technical phone support, easy to install and debug



The H5 is a heavy duty handicap door opener that is activated by wireless handicap buttons for the disabled.This heavy duty swing door system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians

With advanced wide voltage technique,it makes the swing door operator highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.

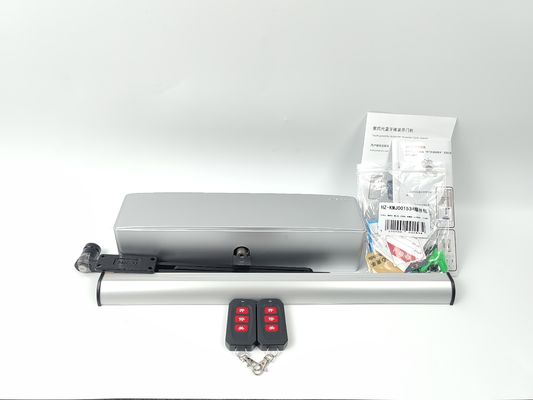

The H5 is a heavy duty commercial door opener kit for both inswinging and outswinging doors and two stainless handicap push to exit buttons for automatic doors. This system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

Model H5
Capacity 180KG
Input Voltage AC 220V/110V ± 10%
Output Voltage DC24V
Motor power
30W
Power supply
power
160W
Motor voltage
24V
Remote control
frequency
430Mhz
working
temperature
-35-85
Limit Switch Spring / Magnetic
Noise ≤60dB
Waterproof level
IPX4

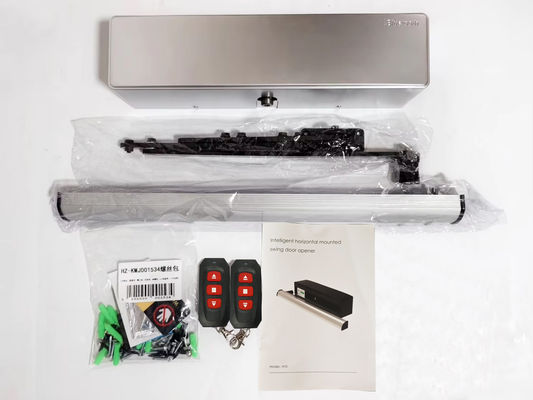

Both inswing and outswing opening door available,you will get both of inswing push arm and outswing pull arm

Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator 0

Safe and Easy Operation for Handicapped or Pedestrians,Both Opening Door Manually by Hand and Automatically by Push Button Are Available

Automatic Swing Door Opener Remote Control Swing Opening Heavy Duty Door Operator 1
