160W Brushless Automatic Door Operators For People With Disabilities

160W Brushless Automatic Door Operators For People With Disabilities
160W Brushless Automatic Door Operators For People With Disabilities 160W Brushless Automatic Door Operators For People With Disabilities 160W Brushless Automatic Door Operators For People With Disabilities

Large Image :  160W Brushless Automatic Door Operators For People With Disabilities

Product Details:
Place of Origin: China
Certification: CE Rohs
Model Number: H5
Document: instructions.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 95-140USD
Packaging Details: 535×185×125mm
Delivery Time: 2-7 workdays
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability: Unlimited inventory
Contact Now Chat Now

160W Brushless Automatic Door Operators For People With Disabilities

Description
Power Consumption: 160W Operating Temperature: -35°C To +80°C
Noise Level: <60dB Warranty: 1 Years
Safety Features: Obstacle Detection, Auto-Reverse Function Motor: DC24V/100W DC Brushless Motor
Power Voltage: AC110-250V 50-60Hz Door Weight Capacity: 180kg
Product Type: Swing Door Operator Additional Features: Adjustable Opening And Closing Force
Door Leaf Weight: 180KG*1 Leaf
Highlight:

160W Automatic Door Operators

,

Brushless Automatic Door Operators

,

24V auto gate opener

Door Opener for Disabilities

[Automatic door opening through disabled button] The door opener can be opened through wireless disabled button or wireless remote key, making it convenient for disabled people to enter safely

If the automatic door opener encounters an object on the closing path, it will automatically reopen the door to ensure the safety of personnel on the door. If used for disabled access, it is recommended to install an optional sports safety scanner to extend the opening time. When an obstacle is detected, it will open the swinging door in reverse.

Durable Motor: The motor adopts wide voltage technology, with an input voltage of AC100V to AC240V, which is very durable and will not easily burn out due to unstable input voltage

[Easy programming and debugging through control board] The parameter program can be easily adjusted through the control board of the automatic swing door, and the door can be set to remain open

[Easy to install] US technical phone support, easy to install and debug.

Model H5
Capacity 180KG
Input Voltage AC 220V/110V ± 10%
Output Voltage DC24V
Motor power
30W
Power supply
power
160W
Motor voltage
24V
Remote control
frequency
430Mhz
working
temperature
-35-85
Limit Switch Spring / Magnetic
Noise ≤60dB
Waterproof level
IPX4

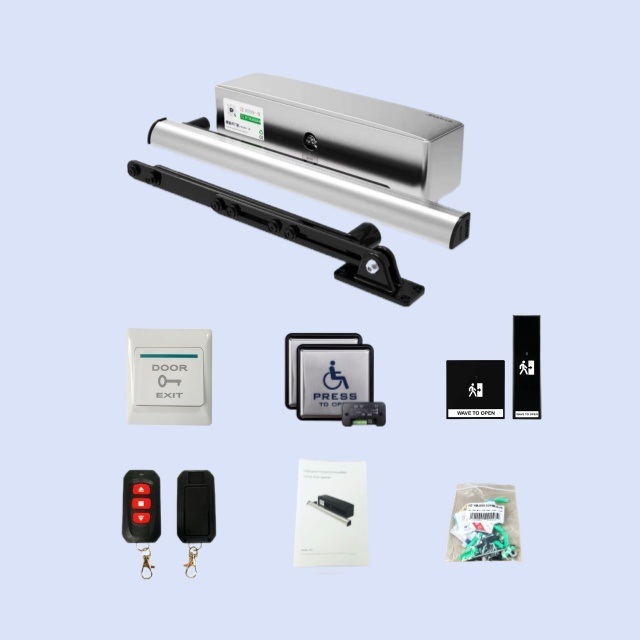

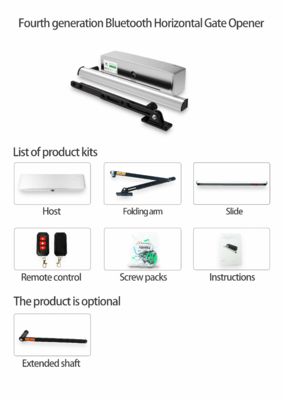

Both inswing and outswing opening door available,you will get both of inswing push arm and outswing pull arm

160W Brushless Automatic Door Operators For People With Disabilities 0

Safe and Easy Operation for Handicapped or Pedestrians,Both Opening Door Manually by Hand and Automatically by Push Button Are Available

160W Brushless Automatic Door Operators For People With Disabilities 1
