Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology

Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology
Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology

Large Image :  Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 222
Contact Now Chat Now

Brushless DC Gate Motor with 2000kg Load Capacity Fast Speed 15m/Min and Brushless Technology

Description
Electric Current: DC Rated Power: 400W
Working Temp: -25℃~+65℃ Limit Switch: Spring Limit/Magnetic Limit
Load Capacity: 2000kg Input Power: AC220V/110V±10%
IP Class: IP65 Noise Level: ≤53db
Model: BLB2000 Dimensions: 37*26*25cm
Load Speed: 15m/Min Output Power: DC24V
Driving Type: Electromechanical Max Gate Weight: 2000KG
Speed Adjustment: 50%
Highlight:

2000kg Load Capacity Brushless DC Gate Motor

,

Fast Speed 15m/Min Automatic Gate Motor

,

Brushless Technology Electric Gate Motor

Brushless DC Gate Motor 2000kg Electric Limit Fast Speed
High-performance brushless DC motor designed for heavy-duty gate automation with advanced electric limit technology and adjustable speed control.

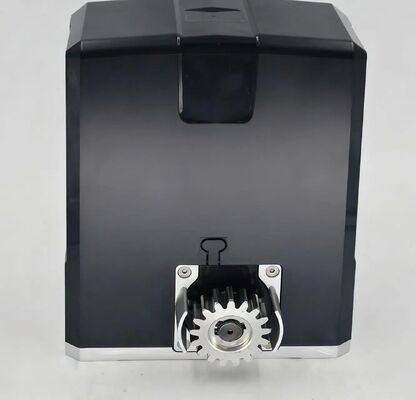

Brushless DC gate motor featuring modern design and compact construction
Key Features
  • Brushless Motor Technology: Ultra-long lifespan with maintenance-free operation, no heat generation during extended use, and ultra-quiet performance
  • All-Round Electric Limit: Simplified installation and debugging without mechanical limit requirements, precise limit memory with complete functionality
  • Automatic Position Recovery: No relearning required when exceeding limits, releasing clutch, manual door sliding, or power restart
  • Adjustable High Speed: Door opening speed adjustable within 50% range, compatible with curved sliding doors, folding doors, fixed panel sliding doors, and top-hung sliding doors
Gate motor installation diagram showing mounting points and connections Close-up view of brushless DC motor components and construction
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Rated Power 200W 300W 400W
Load Speed 7-15m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch All-round electric limit
Noise Level ≤53dB
Working Temperature -25℃~+65℃
IP Class IP65
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Advanced production equipment at Sichuan Duoxiang factory
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg, suitable for both residential and industrial applications.
We offer standard and high-speed models featuring excellent soft-start and soft-stop performance. As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch technology.
Our products are sold worldwide and highly praised by users. With an independent R&D team and strong development capabilities, we provide OEM/ODM services committed to delivering high-quality products and supporting our partners' business growth.
Quality testing process for gate motors Packaged gate motors ready for shipment
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets of each product type available. Inventory products come in neutral packaging without branding.
Delivery Time
Shipment occurs on the same day or next day after payment receipt.
Customized Content
Product logo customization available free for orders of 20+ sets. Outer packaging customization free for orders of 100+ sets.
After-Sales Service
Most products include one-year warranty from receipt date. Free accessories provided during warranty period (shipping costs excluded). Free technical support available.
