Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor

Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor
Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor

Large Image :  Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor

Product Details:
Place of Origin: China
Certification: CE
Model Number: BLB1500
Document: BLB Brushless Instruction M...al.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 140-175USD
Packaging Details: 34*28*40cm
Delivery Time: 2-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10000pcs/month
Contact Now Chat Now

Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor

Description
Color: Black Maximum Door Weight: 1500KG
Rated Power: 300W Door Speed: 7-15m/min
Input Voltage: 110V/220V Output Voltage: DC24V
Power Lithium Battery: 5Ah/10Ah Built-in
Highlight:

24V sliding gate motor

,

1500KG brushless gate opener

,

adjustable speed sliding gate motor

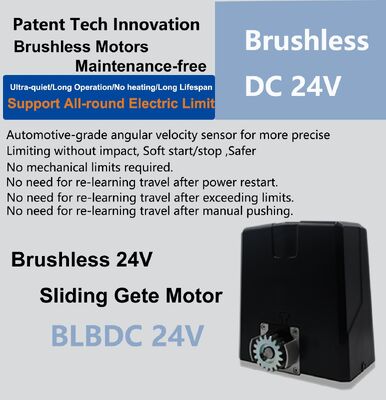

Adjustable Speed Low Voltage Brushless Sliding Gate Opener
BLB1000/1500/2000 DC24V Motor with Speed Potentiometer - Professional grade sliding gate opener systems designed for residential, commercial, and industrial applications.
Key Features
Adjustable Motor Speed

Easily adjust operating speed (7-15 m/min) via built-in speed potentiometer. Clockwise rotation increases speed, counter-clockwise decreases speed. Flexible control suits different door weights and application scenarios.

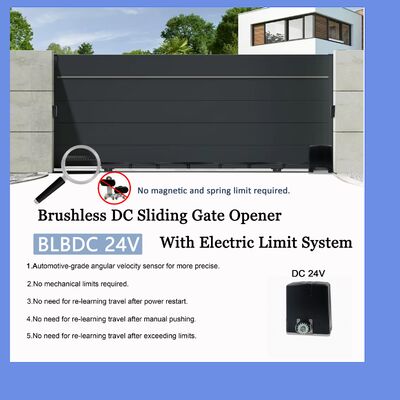

  • All-Around Electric Limit Switch: Single-stroke learning cycle permanently memorizes limit positions. No relearning required after power failure or manual movement.
  • Soft Start and Soft Stop: Smooth acceleration and deceleration with adjustable deceleration distance (10-80 cm) and speed. Reduces mechanical wear for long-term reliability.
  • Obstacle Reversal Protection: Automatically detects obstacles during operation with audible alerts and automatic reversal for enhanced safety.
  • Automatic Closing Function: Adjustable delay time (1-250 seconds) for automatic closure after opening - ideal for contactless operation requirements.
  • Abundant External Interfaces: Compatible with infrared sensors, license plate recognition, access control systems, alarm lights, solar panels, and backup batteries.
  • Low-Voltage DC 24V Operation: Safe low-voltage operation with AC 220V input. Ensures personal safety during installation and maintenance.
  • High Durability and Protection: IP65 weatherproof rating, operating temperature -30℃ to +70℃, noise level <53 dB, brushless motor for longer service life.
  • Multiple Built-in Protections: Motor overcurrent, overload, short circuit, motor failure, and reverse power supply protection.
  • Easy Installation and Commissioning: Clear wiring diagrams, manual clutch release, and simple remote control pairing for quick setup.
Technical Specifications
Parameter BLB-1000 BLB-1500 BLB-2000
Max Gate Weight 1000 kg 1500 kg 2000 kg
Max Travel Limit 1-10 m 1-10 m 1-10 m
Rated Power 200W 300W 400W
Speed 7-15 m/min (Adjustable) 7-15 m/min (Adjustable) 7-15 m/min (Adjustable)
Input Voltage AC220V±10% AC220V±10% AC220V±10%
Working Temp -30℃ ~ +70℃ -30℃ ~ +70℃ -30℃ ~ +70℃
Protection Class IP65 IP65 IP65
Noise <53 dB <53 dB <53 dB

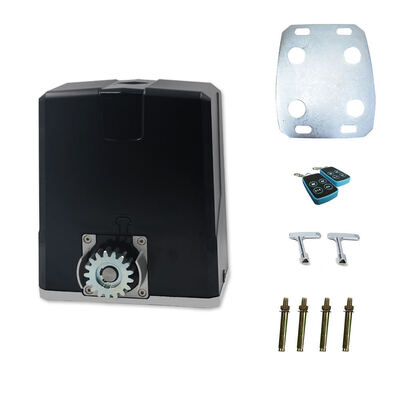

Product Image
Adjustable Speed Low Voltage DC24V Sliding Gate Opener with 1500KG Max Door Weight and Brushless Motor 0
