AC Automatic Sliding Door Opener 220V/110V for Commercial Building
1 High Power Options, Motor Power 370W/550W/750W/1200W, Adapts To 100-2200KG Sliding Gate Weight Requirements
2 Stable Operation Performance, Motor Speed 1400R/MIN, Running Speed 12M/MIN, Starting Current Only 3A, Low Power Consumption & High Efficiency
3 Wide Temperature Adaptability, Works Stably In -25°C To +70°C Environment, Suits Various Climatic Conditions
4 Double Limit Protection, Equipped With Magnetic Limit Switch And Spring Limit Switch, Avoid Overrun & Ensure Position Accuracy

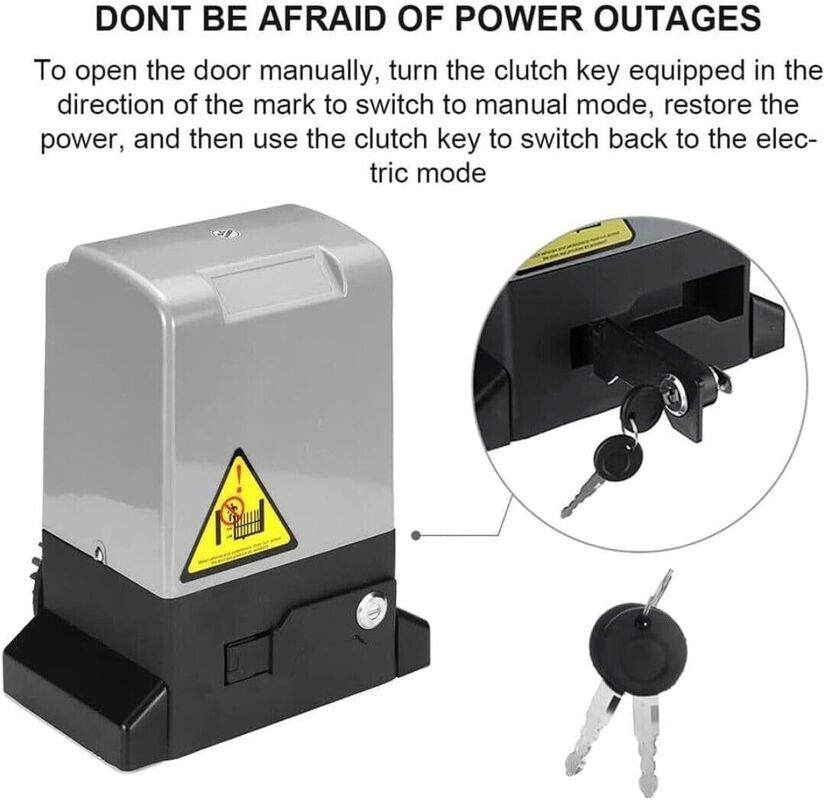

5 Manual Emergency Function, Clutch Device Realizes Manual Operation When Power Failure, Turn 90 Degree Clockwise With Special Key For Quick Switch
6 Reliable Safety Design, Grounding Resistance Less Than 4 Ohms, With Leakage Short Circuit Protection, Weld Limit Iron Block To Prevent Gate Tilting
7 Durable Structure, Adopts Advanced Lubricating Grease, No Need To Replace Or Add Lubricant, Reduce Maintenance Costs
8 Firm Installation, Metal Base Fixation, Scientific Rack Installation Method, Ensure Full Meshing Of Gear And Rack For Stable Operation

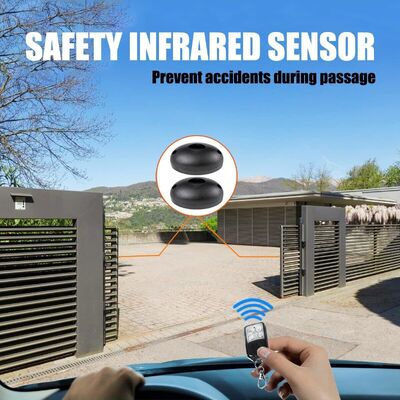

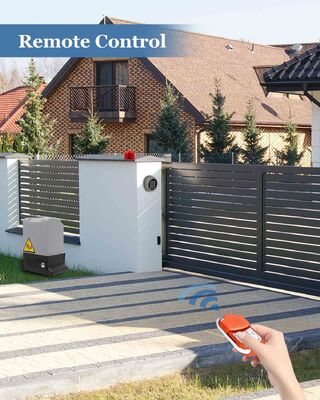

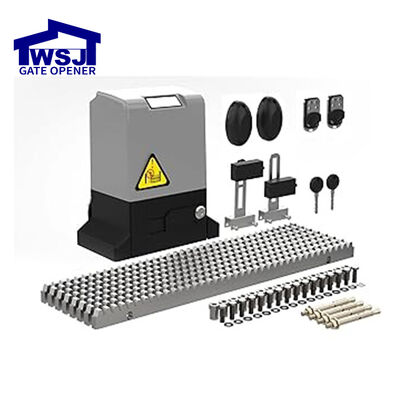

9 Complete Accessory Configuration, Matches Infrared Sensor, Keypad, Warning Light, Remote Control, Rich Control Methods With High Convenience
10 Professional Electrical Design, Reserved Wiring 1 Square Millimeter Or 1.5 Square Millimeter With Two Conductors, Standard Wiring Diagram For Easy Installation
11 Humanized Safety Protection, Strictly Forbid Vehicles And Pedestrians Passing During Operation, Remote Controller Avoid Children Playing To Reduce Safety Risks
12 Sturdy Components, Motor Consists Of Worm, Gear, Driven Gear Etc, High Transmission Stability And Long Service Life
13 Simple Power Supply Test Steps, Clear Operation Procedure, Easy To Check Equipment Operation Status To Ensure Normal Use
14 Rust Prevention Treatment, Special Clutch Keyhole Coated With Antirust Oil, Extend Equipment Service Life
15 Multiple Fault Solutions, Detailed Troubleshooting Guide For Common Faults, Easy To Maintain And Repair
Working principle and main structure and performance
This machine is consists of the motor, worm, gear, driven gear ete. The specifie motordrives the worm, the worm transfers the motion to the worm gear and the drivengear(sprocket), and the driven gear drives the rack.
The motor transfers its motion energy to the sprocket through the worm and gear.
Power supply test
1.Before use, should carefully check the power supply voltage, frequeney and otherdata is in accordance with the requirements, check whether the ground is a goodelectrical wiring is correct.
2.With special random key counterclockwise, first open the clutch, push the slidingdoor, make the door machine idle, ifopen the door machine working normally,reoceupy special random on-offkey clockwise, shut down the cluteh.
3.Put through power supply, start to open the door machine, Observe the door machinerunning situation
4.Adjust the magnets or mechanical stop position, until the door open and closedposition Comply with your Settings .
|
Model
|
MD250
|
MD370
|
MD550
|
MD750
|
MD1200
|
|
Load Capacity
|
600kg
|
800kg
|
1200kg
|
1800kg
|
2200kg
|
|
Motor Power
|
250w
|
370w
|
550w
|
750w
|
1200w
|
|
Door Speed
|
12m/min
|
|
Input Voltage
|
AC 220v 50Hz/AC 110v 40Hz
|
|
Limit Position
|
Magnetic Limit/Spring Limit
|
|
Operating Temperature
|
-25℃-70℃
|
|
Protection Class
|
IP65
|
|
Packing Size
|
35cm*29cm*41cm, 14kg
|
-
Our durable AC automatic sliding door opener (220V/110V) delivers reliable performance for commercial buildings, offices, and industrial sites. Features smooth operation, easy installation, and long service life. Ideal for secure access control.
