Sliding Gate Opener Smart App Control
⚙️【Powerful & Heavy Duty | 220~240V 50Hz】 - Equipped with a copper motor, this gate opener operates on AC 220~240V 50Hz and effortlessly moves gates up to 1800lbs and 40ft in length. Its high-torque gear ensures smooth performance for both residential and commercial use.
⚙️【Secure & Safe Design】- Our sliding gate opener comes with an infrared sensor that detects obstacles, preventing accidents by automatically stopping the gate. The adjustable rebound force ensures the gate reverses upon contact with an obstruction, while over-heating protection adds another layer of security.
⚙️【Quiet & Durable Rack Drive】- With 8pcs of 13.12ft, 8mm thick solid steel gear racks, this sliding gate operator provides smooth and quiet operation (≤45dB). Its weatherproof, corrosion-resistant construction ensures long-lasting durability, operating reliably in temperatures ranging from -13°F to 131°F.
⚙️【Auto Closing & Versatile Control】- Set the auto-close timer to 5s, 10s, or 20s for automatic gate closure. This motor also supports Wi-Fi module (sold separately) for app control from anywhere. Includes 2pcs 4-key remote controls (12V 27A battery included) with a 100ft range and supports up to 40 remote codes.
⚙️【Reliable Technical Support】- Enjoy lifetime technical support for seamless installation and operation. Our team is ready to provide prompt assistance, helping you resolve any issues and optimize the performance of your gate opener.

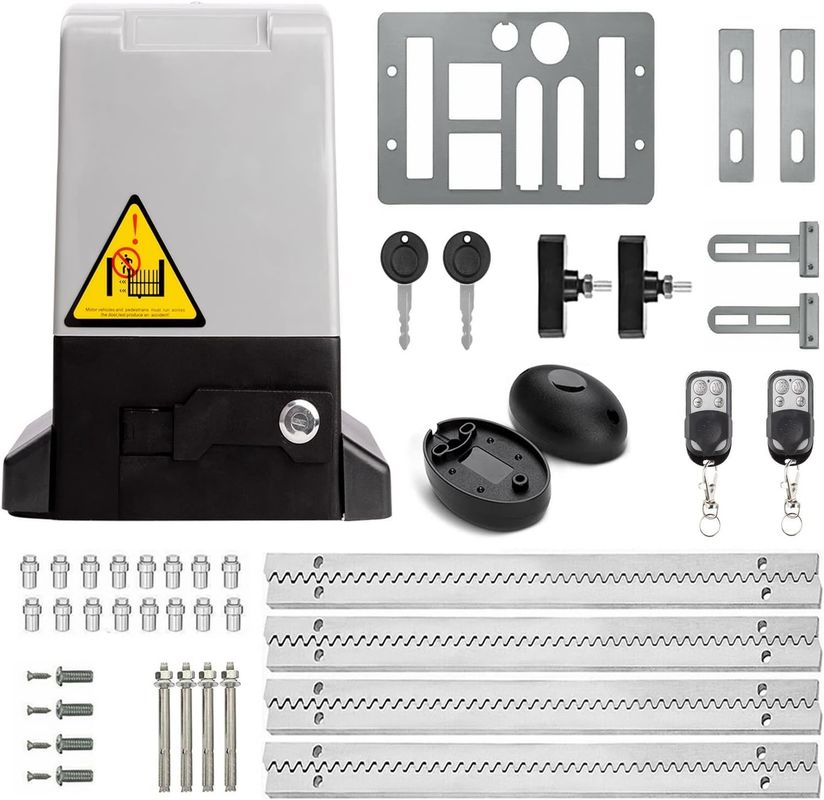

Product List
1:Host/Motor*1；2:mounting base*1；3:Limit magnet*2；4:Limit bracket*2；5:Expansion screw*4； 6:Remote control*2；7:Clutch key*2；8:Rack:4m
Product Introduction
90S automatic closing, to avoid the motor in the stroke failure for a long time idling burn motor motor running time adjustable (default 90S)
In the state of power failure, turn 90 with the clutch key in the direction indicated to switch to manual mode
Rack can be equipped with 8MM-12MM
Pure copper coils are not suitable for aluminum coils or copper-clad aluminum, and the lifespan of the door opener is longer.
Product parameter table
| Model |
MD280 |
MD370 |
MD550 |
MD750 |
MD1200 |
MD1500 |
| Capacity |
600KG |
800KG |
1200KG |
1800KG |
2200KG |
2500KG |
| Input Voltage |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
| Output Voltage |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
AC 220V/110V ± 10% |
| Rated Power |
280W |
370W |
550W |
750W |
1200W |
1500W |
| Gate Speed |
12m/min |
12m/min |
12m/min |
12m/min |
12m/min |
12m/min |
| Motor Speed |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
| Remote Control Range |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
Open space 30~90 meters |
| Temperature |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
-30° C ~ +65° C |
| Limit Switch |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
Spring / Magnetic |
| Noise |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
| Protection Class |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
Whether it's hot summer or cold winter, you can easily open the door in the car through the remote control.
The remote control adopts scrolling code technology, which is safer.
The door opener is IP65 rated, resistant to high temperature exposure, waterproof, and can also operate in extremely low temperature environments.
Infrared sensors can detect obstacles, while the 'stop and reverse' mechanism will automatically retract to ensure your safety.
Using solid galvanized steel, rust-resistantand highly reliable, requires little to nomaintenance.
More Sturdy More Efficient More Durable.
Application Scenarios
All kinds of sliding gates can be used
Suitable for all hotels, factories, schools, private homes, and public units.
Single sliding gate or Double sliding gate.
Our advantages
Customization capability:
1: Produce sample images within 1 hour;
2: Customized orders will be shipped within 3-7 days;
3: Bulk customization: 20-30 days for shipping, supporting factory inspection;
4: Support customization of functions;
Fast shipping capability:
1: 1-3 day fast shipping capability:
1) If payment is made between 8:00-12:00am China time, it will be shipped on the same day or the next day;
2) If payment is made between 13:00-24:00 China time, shipment will be made on the second or third day;
After sales guarantee
1: High standard service: Our company has always maintained a 5-star rating service;
2: The warranty period is 1 year, during which spare parts will be replaced free of charge;
3: A professional after-sales service team will immediately provide follow-up services after the transaction: ensuring timely updates of goods transportation information, professional technical guidance for on-site installation, and CEO online supervision of the after-sales team's service progress and standards.
