Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance

Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance
Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance

Large Image :  Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 75
Contact Now Chat Now

Anti-Pinch AC Electric Sliding Gate Motor with 600kg Max Gate Weight and IP65 Waterproof for School Safety Entrance

Description
Load Speed: 12m/Min Limit Switch: Spring Limit/Magnetic Limit
Noise Level: ≤50db Input Power: AC220V/110V±10%
IP Class: IP65 Rated Power: 130W
Driving Type: Electromechanical Dimensions: 32*26*39cm
Working Temp: -30℃~+65℃ Electric Current: AC
Max Gate Weight: 600kg/800kg/1200kg/1800kg/2200kg Output Power: DC24V
Motor Power: 370W/550W/750W/1200W Motor Speed: 1400R/MIN
Starting Current: 3A
Highlight:

Anti-Pinch Sliding Gate Motor

,

600kg Max Gate Weight Automatic Gate Opener

,

IP65 Waterproof Electric Gate Motor

Anti-Pinch AC Electric Sliding Motor for School Safety Entrance and Home Garden
High-performance sliding gate motor designed for safety and reliability in educational institutions, residential properties, and garden applications.
Anti-pinch AC electric sliding gate motor installation diagram
Key Features
  • High Power Options: Motor power 370W/550W/750W/1200W, adapts to 100-2200kg sliding gate weight requirements
  • Stable Operation: Motor speed 1400R/MIN, running speed 12M/MIN, starting current only 3A for low power consumption and high efficiency
  • Wide Temperature Range: Works stably in -25°C to +70°C environments, suitable for various climatic conditions
  • Double Limit Protection: Equipped with magnetic limit switch and spring limit switch to prevent overrun and ensure position accuracy
  • Manual Emergency Function: Clutch device enables manual operation during power failure - turn 90 degrees clockwise with special key for quick switch
  • Reliable Safety Design: Grounding resistance less than 4 ohms, with leakage short circuit protection, weld limit iron block to prevent gate tilting

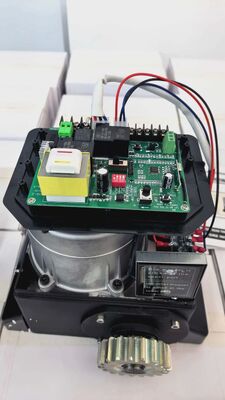

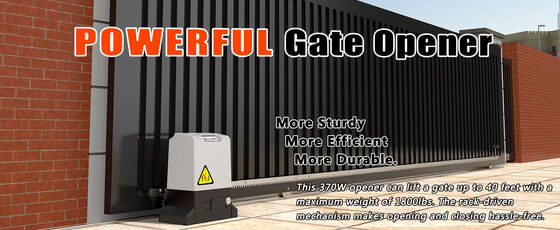

Sliding gate motor internal components and mechanism Gate motor installation and application examples
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600kg 800kg 1200kg 1800kg 2500kg
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V 50HZ / AC110V 60HZ
Output Power DC24V
Limit Switch Magnetic Limit
Noise ≤50dB
Working Temperature -25°C to 70°C
IP Class IP65
Product Construction & Packaging

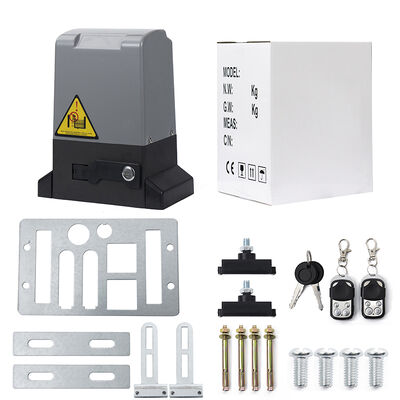

Gate motor packaging and shipping process Gate motor components and materials

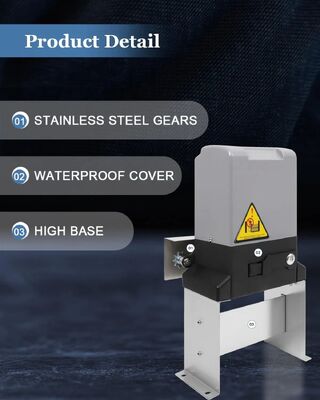

Premium Construction Features
  • Aluminum Alloy Shell: Strictly selected aluminum materials according to standards for high-quality products
  • Rust Proof Stainless Steel Gear: Durable, rust resistant, and corrosion-resistant construction
  • Reserve Power Supply: Backup power supply available after power outage for continuous operation
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Duoxiang Intelligent Equipment production line and technology
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.
We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800kg to 6500kg, suitable for general residential and industrial applications. These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance.
We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch. Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities.
We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.
Duoxiang Intelligent Equipment product certification and quality standards Duoxiang Intelligent Equipment global distribution network
Frequently Asked Questions
Inventory Availability
Having sufficient inventory: 100 sets of inventory for each type of product. Inventory products are in neutral packaging without branding.
Delivery Time
Ships on the same day or the next day after receiving payment.
Customization Options
  • Product Logo Customization: Free logo customization for orders of 20+ sets
  • Outer Packaging Customization: Free outer packaging customization for orders of 100+ sets
After-Sales Service
  • Most products have a one-year warranty period starting from receipt of goods
  • Free accessories provided during warranty period (excluding shipping costs)
  • Complimentary technical support provided
