Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation

Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation
Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation

Large Image :  Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 161
Contact Now Chat Now

Industrial 1500kg Max Gate Weight Sliding Gate Motor with Oil-immersed Motor and Ultra-quiet Smart Operation

Description
IP Class: IP55 Driving Type: Electromechanical
Max Gate Weight: 800kg/1000kg/1500kg/2000kg/2500kg Electric Current: DC
Load Speed: 12m/Min Dimensions: 34*27*40cm
Rated Power: 180W Output Power: DC24V
Input Power: AC220V/110V±10% Limit Switch: Spring Limit/Magnetic Limit
Noise Level: ≤50db Working Temperature: -30℃~+65℃
Motor Type: Oil-immersed Motor Worm Gear Material: Copper
Shell Material: Aluminum Alloy
Highlight:

1500kg Max Gate Weight Sliding Gate Motor

,

Oil-immersed Motor Automatic Gate Motor

,

Ultra-quiet & Smart Operation Heavy Duty Gate Motor

Industrial Sliding Gate Motor 1500kg Heavy Duty
Professional heavy-duty sliding gate motor designed for factory entrance gates with capacity up to 1500kg.
Industrial sliding gate motor overview
Key Features
  • Oil-immersed Motor: Reduces friction and heat from worm gear, enhancing overall performance
  • Copper Worm Gear: Robust and wear-resistant construction for extended motor service life
  • Ultra-quiet & Smart Operation: Supports frequent gate cycles with soft start/stop technology
  • Advanced Safety: Obstacle detection with auto-rebound and master-slave linkage capability
  • Convenient Control: Remote operation via mobile app with optional backup battery support

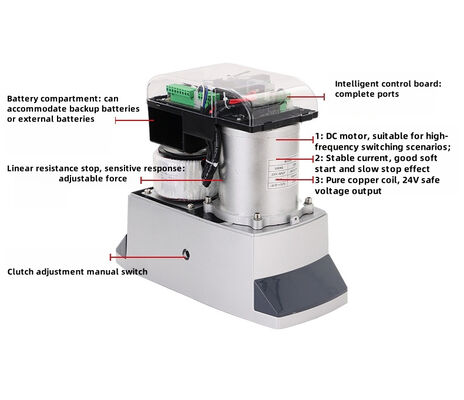

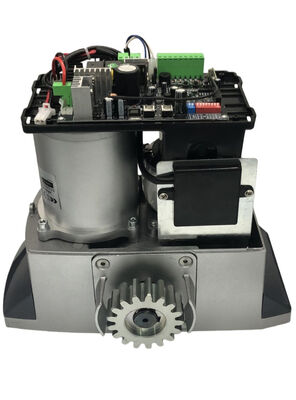

Gate motor internal components Gate motor installation example
Technical Specifications
Model BG800 BG1000 BG1500 BG2000 BG2500
Max Gate Weight 800KG 1000KG 1500KG 2000KG 2500KG
Rated Power 110W 130W 180W 280W 350W
Load Speed 12m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch Spring limit/Magnetic limit
Noise Level ≤50dB
Working Temperature -30℃~+65℃
IP Class IP55
Packaging & Delivery
Product packaging Delivery process
Construction Quality
  • Aluminum Alloy Shell: Standard-compliant aluminum materials for high-quality durability
  • Stainless Steel Gear: Rust-resistant and corrosion-resistant for long-term reliability
  • Backup Power Supply: Continuous operation during power outages with reserve power capability
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment facility Company overview
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors. Load capacities range from 800 kg to 6500 kg, suitable for both residential and industrial applications. We offer standard speed and high-speed models with excellent soft-start and soft-stop performance.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold worldwide and receive high customer satisfaction ratings.
We provide OEM/ODM services and are committed to delivering high-quality products that help partners expand their businesses and assist users in achieving smarter access control solutions.
Product application examples Additional product features
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets available for each product type. Inventory products come in neutral packaging without branding.
What is the delivery time?
We ship on the same day or next day after receiving payment confirmation.
What customization options are available?
  • Product logo customization: Free for orders of 20+ sets
  • Outer packaging customization: Free for orders of 100+ sets
What after-sales service do you provide?
  • One-year warranty period starting from receipt of goods
  • Free replacement accessories during warranty (excluding shipping costs)
  • Complimentary technical support services
