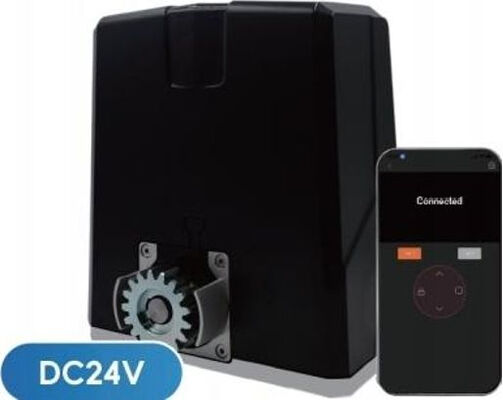

BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating

All Products

Automatic Gate Motor

(168)

Swing Gate Motor

(18)

Sliding Gate Motor

(31)

Industrial Gate Motor

(1)

Garage Door Opener

(1)

Automatic Door Operators

(4)

Gate Operators

(1)

Side Door Opener

(4)

Apartment Door Opener

(1)

Horizontal Door Opener

(15)

Office Door Opener

(2)

Sliding Door Motor

(3)

Door Closer

(5)

Door Opener Parts

(2)

Window Opener

(14)
Certification
China Sichuan Wanshijia Technology Co., Ltd certification
China Sichuan Wanshijia Technology Co., Ltd certification
Customer Reviews
Это очень профессиональная фабрика. Мы уже дважды сотрудничали с ними; они решили мои индивидуальные технические проблемы и проявили исключительную готовность к сотрудничеству. Настоятельно рекомендую.

—— Дмитрий

I feel very comfortable working with Alisa. She helped me customize my logo, and although my company is still small, she has been very helpful.

—— Robert Smith

This is a professional factory, and the product quality is excellent. My customers have had virtually no after-sales issues after using their products, and the market feedback has been very positive.

—— Michael Brown

I'm Online Chat Now

BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating

BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating
BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating

Large Image :  BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 164
Contact Now Chat Now

BLB Brushless Sliding Gate Motor with 1000kg Max Gate Weight and IP65 Waterproof Rating

Description
Rated Power: 200W Working Temp: -25℃~+65℃
Specification: 34*27*40cm Power Li Battery: 5ah/10ah (Internal Optional)
Input Power: AC110-240V Max Gate Weight: 1000kg
IP Class: IP65 Rotation Speed: 2100rpm
Max Travel Limit: 10m Driving Type: Electromechanical
Load Speed: 7-15m/Min Output Power: DC24V
Noise: ≤53db Electric Current Type: DC
Working Voltage: DC24V
Highlight:

Brushless Motor Sliding Gate Motor

,

1000kg Max Gate Weight Sliding Gate Opener

,

IP65 Waterproof Automatic Gate Motor

BLB Brushless Sliding Gate Motor with WiFi & Bluetooth Remote Control Optional
Advanced Brushless Motor Technology
  • Brushless motor technology ensures ultra-long service life and maintenance-free operation
  • No heat generation with low loss, capable of 24-hour continuous operation
  • Significantly lower failure rate compared to traditional brushed motors
  • DC24V safe low voltage operation with backup battery and solar panel compatibility
  • Non-stop power supply during outages, compatible with lithium/lead-acid batteries
  • Ideal for off-grid and emergency applications
Smart Control & Safety Features
  • All-round electric limit system eliminates need for mechanical limits
  • Easy commissioning with no re-learning required after power interruption
  • Precise and stable positioning maintains settings after manual operation
  • Soft start and soft stop functionality with anti-collision protection
  • Automatic obstacle reversal for enhanced safety
  • Smooth operation without impact, protecting both gate and mechanism
Versatile Application & Durability
  • Adjustable speed, force, and slow-down distance for various gate types
  • Suitable for linear gates, sliding gates, folding gates, and special-shaped gates
  • IP65 high protection rating for outdoor durability
  • Wide working temperature range: -30℃ to +65℃
  • Rainproof, dustproof, and anti-aging construction
  • Ideal for villas, communities, factories, and parks
Integration & Customization
  • Rich external interfaces for intelligent control integration
  • Compatible with access control, facial recognition, and WiFi/Bluetooth APP
  • Supports infrared photocells, alarm lights, and other accessories
  • Factory direct supply with OEM/ODM support
  • CE certified for quality assurance
  • Customizable appearance, functions, packaging, and parameters
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Limit System All-round Electric Limit
Max Travel Distance 10m 10m 15m
Protection Class IP65
Noise Level ≤53dB
Working Temperature -30℃~+65℃
Backup Battery Optional
Solar Panel Compatible Supported
Certification CE Certified
Product Images
BLB Brushless Sliding Gate Motor overview BLB Motor installation example BLB Motor close-up detail BLB Motor right elevation view BLB Motor left elevation view BLB Motor front elevation view BLB Motor detailed product image
After Sales Service
  • Standard Warranty: 18 months
  • Extended Warranty: Optional coverage up to 24 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: Remote operation and maintenance training provided
Company Profile
Sichuan Duoxiang Intelligent Equipment facility
Sichuan Duoxiang Intelligent Equipment Co., Ltd.

We are a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the research, development, and production of access control systems and smartphone access control systems.

Our product line includes high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors with load capacities ranging from 800 kg to 6500 kg. These motors are suitable for both residential and industrial applications and include standard speed and high-speed models featuring excellent soft-start and soft-stop performance.

As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold domestically and internationally and receive high praise from users.

We maintain an independent R&D team with strong capabilities and provide OEM/ODM services, committed to delivering high-quality products that help partners expand their businesses and assist users in achieving smarter automation goals.

Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets of each product type available. Inventory products come in neutral packaging without branding.
What is the delivery time?
We ship on the same day or the next day after receiving payment.
What customization options are available?
  • Product logo customization: Free for orders of 20 sets or more
  • Custom outer packaging: Free for orders of 100 sets or more
What after-sales service do you provide?
  • Most products carry a one-year warranty period starting from receipt of goods
  • Free accessories provided during warranty period (excluding shipping costs)
  • Complimentary technical support services
