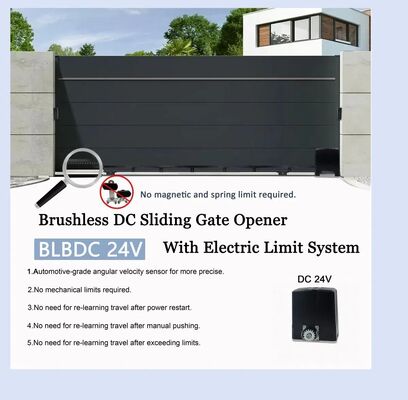

BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof

Certification
China Sichuan Wanshijia Technology Co., Ltd certification
China Sichuan Wanshijia Technology Co., Ltd certification
Customer Reviews
Это очень профессиональная фабрика. Мы уже дважды сотрудничали с ними; они решили мои индивидуальные технические проблемы и проявили исключительную готовность к сотрудничеству. Настоятельно рекомендую.

—— Дмитрий

I feel very comfortable working with Alisa. She helped me customize my logo, and although my company is still small, she has been very helpful.

—— Robert Smith

This is a professional factory, and the product quality is excellent. My customers have had virtually no after-sales issues after using their products, and the market feedback has been very positive.

—— Michael Brown

I'm Online Chat Now

BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof

BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof
BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof

Large Image :  BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 164
Contact Now Chat Now

BLB1500 Brushless Sliding Gate Motor with Soft Start & Soft Stop and IP65 Waterproof

Description
Limit Switch: All-Round Electric Limit Electric Current: DC
IP Class: IP65 Load Speed: 7-15m/Min
Dimensions: 34*27*40cm Max Gate Weight: 1000kg
Max Travel Limit: 10m Power Li Battery: 5ah/10ah (Internal Optional)
Rotation Speed: 2100rpm Output Power: DC24V
Working Temp: -25℃~+65℃ Rated Power: 200W
Input Power: AC110-240V Driving Type: Electromechanical
Noise Level: ≤53db
Highlight:

Brushless Motor Sliding Gate Motor

,

Soft Start & Soft Stop Sliding Gate Opener

,

IP65 Waterproof Automatic Gate Motor

BLB1500 Sliding Gate Motor Brushless with Soft Start & Soft Stop Function
Product Advantages
  • Brushless motor technology for ultra-long service life and maintenance-free operation
  • No heat generation with low loss, capable of 24-hour continuous operation
  • DC24V safe low voltage with backup battery and solar panel compatibility
  • Non-stop power supply during outages, compatible with lithium/lead-acid batteries
  • All-round electric limit system eliminates need for mechanical limits
  • Soft start & soft stop with anti-collision and obstacle reversal protection
  • Adjustable speed, force, and slow-down distance for various gate types
  • IP65 high protection rating with wide working temperature range (-30℃ to +65℃)
  • Rich external interfaces compatible with intelligent control systems
  • Factory direct supply with OEM/ODM support and CE certification
Technical Specifications
Specification BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Limit System All-round Electric Limit
Max Travel Distance 10m 10m 15m
Protection Class IP65
Noise Level ≤53dB
Working Temperature -30℃~+65℃
Product Images
BLB Series Sliding Gate Motor overview
BLB Series motor installation example
BLB Series motor close-up view
BLB Series motor right elevation
BLB Series motor left elevation
BLB Series motor front elevation
BLB Series motor detailed components
Key Features
  • Brushless DC motor (no heat, long life, maintenance-free)
  • DC24V safe low voltage with backup battery & solar compatibility
  • All-round electric limit (no mechanical limit, no re-learn needed)
  • Soft start & soft stop with adjustable speed & force
  • Obstacle reversal & anti-collision protection
  • IP65 waterproof & dustproof rating
  • Remote control with multiple external interfaces
  • CE certified with OEM/ODM available
After Sales Service

Standard Warranty: 18 months

Extended Warranty: Optional coverage up to 24 months

Global Support: 24/7 technical assistance and spare parts supply

Training: Remote operation/maintenance training

Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment facility

Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.

We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications.

These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch.

Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities. We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.

Frequently Asked Questions
Is there any inventory available?
Having sufficient inventory: 100 sets of inventory for each type of product. The inventory products are in neutral packaging and do not have a brand.
Delivery Time
Ship on the same day or the next day after receiving payment.
Customized Content
Product logo customization: For machines with more than 20 sets, logos can be customized for free. Customization of outer packaging: Free customization of outer packaging for more than 100 sets.
After-sale Service
Most products have a one-year warranty period, starting from the receipt of the goods. Free accessories provided during the warranty period, excluding shipping costs. Provide free technical support.
