BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage

BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage
BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage

Large Image :  BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 164
Contact Now Chat Now

BLB Series Brushless Sliding Gate Operator with 1000kg-2000kg Max Gate Weight All-Round Electric Limit and DC24V Safe Low Voltage

Description
Max Gate Weight: 1000KG / 1500KG / 2000KG Motor Type: DC Brushless Motor
Input Voltage: AC220V±10% Working Voltage: DC24V
Rated Power: 200W / 300W / 400W Operating Speed: 7-15m/min
Limit System: All-round Electric Limit Max Travel Distance: 10m / 10m / 15m
Protection Class: IP65 Noise Level: ≤53dB
Working Temperature: -30℃~+65℃ Backup Battery: Optional
Solar Panel Compatible: Supported Rotation Speed: 2100rpm
Load Speed: 7-15m/min
Highlight:

1000kg-2000kg Max Gate Weight Brushless Sliding Gate Operator

,

All-Round Electric Limit Automatic Gate Motor

,

DC24V Safe Low Voltage BLB Series Gate Motor

1000kg-2000kg Brushless Sliding Gate Operator BLB with All-Round Electric Limit
Advanced brushless sliding gate motor designed for heavy-duty industrial and commercial applications with superior performance and reliability.
Key Advantages
  • Brushless motor technology for ultra-long service life and maintenance-free operation
  • No heat generation with low loss, capable of 24-hour continuous operation
  • DC24V safe low voltage with backup battery and solar panel compatibility
  • All-round electric limit system eliminates mechanical limits and re-learning requirements
  • Soft start & soft stop with anti-collision and obstacle reversal protection
  • Adjustable speed, force, and slow-down distance for various gate types
  • IP65 high protection rating with wide working temperature range (-30℃ to +65℃)
  • Rich external interfaces compatible with intelligent control systems
  • Factory direct supply with OEM/ODM support and CE certification
Technical Specifications
Parameter BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Limit System All-round Electric Limit
Max Travel Distance 10m 10m 15m
Protection Class IP65
Noise Level ≤53dB
Working Temperature -30℃~+65℃
Backup Battery Optional
Solar Panel Compatible Supported
Certification CE Certified
Product Images

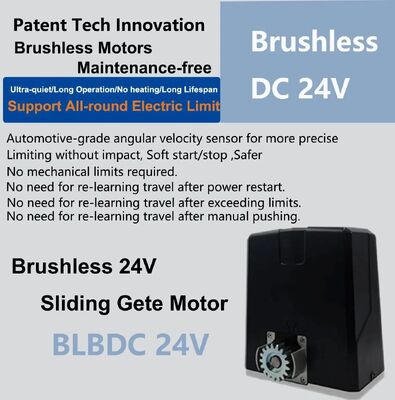

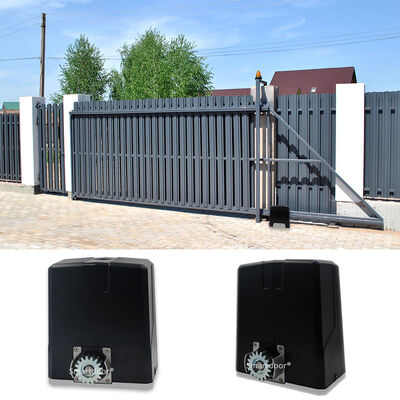

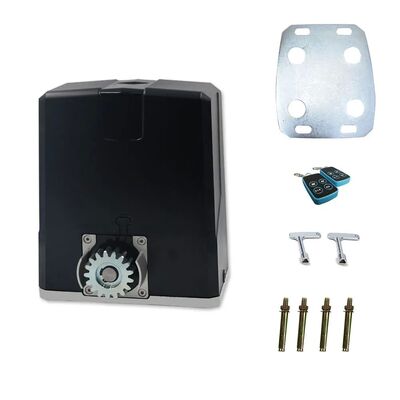

BLB Series Brushless Sliding Gate Motor main unit BLB Motor installation example BLB Motor technical details BLB Motor elevation views BLB Motor right elevation BLB Motor left elevation BLB Motor front elevation and product details
After Sales Service
  • Standard Warranty: 18 months
  • Extended Warranty: Optional coverage up to 24 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: Remote operation and maintenance training
Manufacturer Information
Sichuan Duoxiang Intelligent Equipment Co., Ltd. facility
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.
We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications.
These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch.
Frequently Asked Questions
Inventory Availability
Sufficient inventory available with 100 sets of each product type in neutral packaging.
Delivery Time
Ships on the same day or next day after receiving payment.
Customization Options
Product logo customization available for orders over 20 sets. Outer packaging customization available for orders over 100 sets.
After-Sales Service
Most products include a one-year warranty period starting from receipt of goods. Free accessories provided during warranty period (excluding shipping costs). Free technical support available.
