BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof

BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof
BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof

Large Image :  BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 164
Contact Now Chat Now

BLB1000 Brushless Sliding Gate Motor with 1000kg Max Gate Weight DC24V Safe Low Voltage and IP65 Waterproof

Description
Input Power: AC110-240V Power Li Battery: 5ah/10ah (Internal Optional)
Noise: ≤53db Max Gate Weight: 1000kg
Output Power: DC24V Max Travel Limit: 10m
Specification: 34*27*40cm Rated Power: 200W
Working Temp: -25℃~+65℃ Load Speed: 7-15m/Min
IP Class: IP65 Rotation Speed: 2100rpm
Driving Type: Electromechanical Electric Current Type: DC
Limt Switch: All-Round Electric Limit
Highlight:

1000kg Max Gate Weight Sliding Gate Motor

,

DC24V Safe Low Voltage Sliding Gate Opener

,

IP65 Waterproof Automatic Gate Motor

BLB1000 Brushless Sliding Gate Motor DC24V with Backup Battery
Advanced brushless sliding gate motor offering superior performance, safety, and reliability for residential and industrial applications.
Key Advantages
  • Brushless motor technology for ultra-long service life and maintenance-free operation
  • No heat generation with low loss, capable of 24-hour continuous operation
  • DC24V safe low voltage with backup battery and solar panel compatibility
  • Non-stop power supply during outages, compatible with lithium/lead-acid batteries
  • All-round electric limit system eliminates need for mechanical limits
  • Soft start & soft stop with anti-collision and obstacle reversal protection
  • Adjustable speed, force, and slow-down distance for various gate types
  • IP65 protection rating with wide operating temperature range (-30℃ to +65℃)
  • Rich external interfaces for intelligent control systems integration
  • Factory direct supply with OEM/ODM support and CE certification
Technical Specifications
Specification BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Limit System All-round Electric Limit
Max Travel Distance 10m 10m 15m
Protection Class IP65
Noise Level ≤53dB
Working Temperature -30℃~+65℃
Product Images

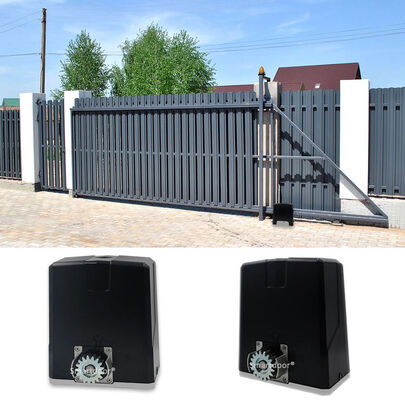

BLB Series Brushless Sliding Gate Motor overview
BLB Motor installation and application

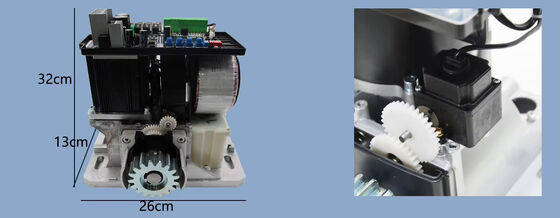

BLB Motor technical details
BLB Motor right elevation view
BLB Motor left elevation view
BLB Motor front elevation view
BLB Motor detailed product image
Key Configurations
  • Brushless DC motor (no heat, long life, maintenance-free)
  • DC24V safe low voltage with backup battery & solar compatibility
  • All-round electric limit (no mechanical limit, no re-learn needed)
  • Soft start & soft stop with adjustable speed & force
  • Obstacle reversal & anti-collision protection
  • IP65 waterproof & dustproof rating
  • Remote control + multiple external interfaces
  • CE certified with OEM/ODM availability
After Sales Service

Standard Warranty: 18 months

Extended Warranty: Optional coverage up to 24 months

Global Support: 24/7 technical assistance and spare parts supply

Training: Remote operation/maintenance training

Manufacturer Profile

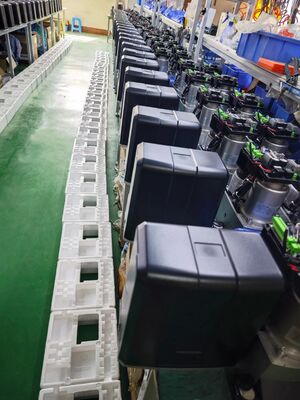

Sichuan Duoxiang Intelligent Equipment facility

Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.

We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications.

These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch.

Frequently Asked Questions
Is there any inventory available?
Having sufficient inventory: 100 sets of inventory for each type of product. The inventory products are in neutral packaging and do not have a brand.
Delivery Time
Ship on the same day or the next day after receiving payment.
Customized Content
Product logo customization: For machines with more than 20 sets, logos can be customized for free. Customization of outer packaging: Free customization of outer packaging for more than 100 sets.
After-sales Service
Most products have a one-year warranty period, starting from the receipt of the goods. Free accessories provided during the warranty period, excluding shipping costs. Provide free technical support.
