Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed
Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Large Image :  Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 75
Contact Now Chat Now

Commercial Grade Sliding Gate Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Description
Max Gate Weight: 600kg/800kg/1200kg/1800kg/2200kg Load Speed: 12m/Min
Limt Switch: Spring Limit/Magnetic Limit Output Power: DC24V
IP Class: IP65 Electric Current: AC
Driving Type: Electromechanical Specification: 32*26*39cm
Noise: ≤50db Input Power: AC220V/110V±10%
Working Temp: -30℃~+65℃ Motor Power: 370W/550W/750W/1200W
Motor Speed: 1400R/MIN Starting Current: 3A
Grounding Resistance: Less Than 4 Ohms
Highlight:

600kg Max Gate Weight Sliding Gate Motor

,

IP65 Waterproof Automatic Gate Opener

,

12m/Min Load Speed Gate Motor

Commercial Grade Sliding Gate Motor AC Automatic Door Opener
High-performance automatic door opener designed for factory gates with robust construction and reliable operation.
Commercial sliding gate motor installation and operation
Key Features
  • Multiple Power Options: Available in 370W, 550W, 750W, and 1200W models to handle gate weights from 100kg to 2200kg
  • Stable Performance: Motor speed of 1400 RPM with running speed of 12 meters per minute and low 3A starting current
  • Wide Temperature Range: Reliable operation from -25°C to +70°C for various climate conditions
  • Dual Limit Protection: Magnetic and spring limit switches prevent overrun and ensure precise positioning

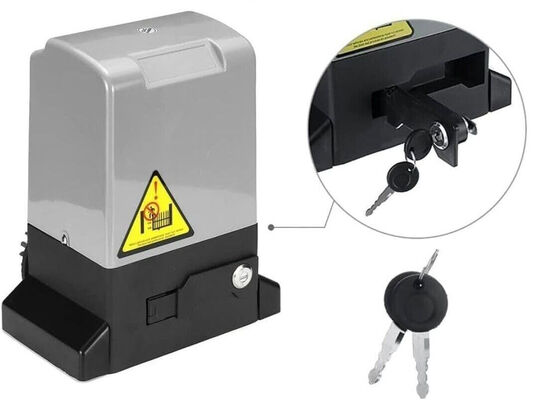

  • Emergency Manual Operation: Clutch device allows manual operation during power failure with 90-degree key rotation
  • Advanced Safety: Grounding resistance under 4 ohms with leakage and short circuit protection, plus weld limit iron blocks
Sliding gate motor internal components and construction Gate motor installation and mounting details
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600kg 800kg 1200kg 1800kg 2500kg
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V 50HZ / AC110V 60HZ
Output Power DC24V
Noise Level ≤50dB
Working Temperature -25°C to 70°C
IP Rating IP65
Packaging & Delivery
Gate motor packaging and shipping preparation Product packaging details and protection
Premium Construction Features

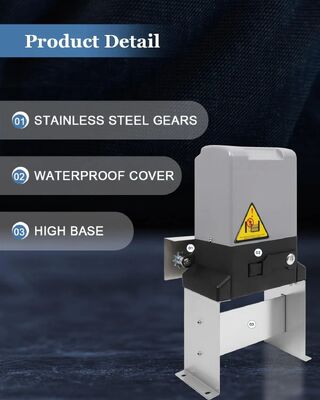

Aluminum alloy shell construction
Aluminum Alloy Shell: High-quality aluminum materials for durable performance
Stainless steel gear mechanism
Stainless Steel Gear: Rust-resistant and corrosion-resistant for long-term reliability
Backup Power Supply: Emergency power availability during outages
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Company operations and production capabilities
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg. These motors feature excellent soft-start and soft-stop performance and include both standard and high-speed models.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold worldwide and highly praised by users. We offer OEM/ODM services and are committed to providing high-quality products to help partners expand their businesses.
Product applications and installation examples Additional product features and benefits
Frequently Asked Questions
Inventory Availability
We maintain sufficient inventory with 100 sets available for each product type. Inventory products come in neutral packaging without branding.
Delivery Time
Orders ship on the same day or next day after payment confirmation.
Customization Options
Product logo customization available free for orders of 20+ sets. Outer packaging customization free for orders of 100+ sets.
After-Sales Service
Most products include a one-year warranty from receipt date. Free accessories provided during warranty period (shipping costs excluded). Comprehensive technical support available.
