AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed
AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Large Image :  AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 75
Contact Now Chat Now

AC 220V Automatic Sliding Gate Opener Motor with 600kg Max Gate Weight IP65 Waterproof and 12m/Min Load Speed

Description
Electric Current Type: AC Limit Switch: Spring Limit/Magnetic Limit
Max Gate Weight: 600kg/800kg/1200kg/1800kg/2200kg Load Speed: 12m/Min
IP Class: IP65 Working Temp: -30℃~+65℃
Output Power: DC24V Noise: ≤50db
Input Power: AC220V/110V±10% Specification: 32*26*39cm
Driving Type: Electromechanical Rated Power: 130W
Motor Speed: 1400R/MIN Starting Current: 3A
Grounding Resistance: Less Than 4 Ohms
Highlight:

600kg Max Gate Weight Automatic Sliding Gate Opener

,

IP65 Waterproof Sliding Gate Motor

,

12m/Min Load Speed Gate Opener Motor

AC 220V Automatic Sliding Gate Opener Motor with Safety Features & Remote Control

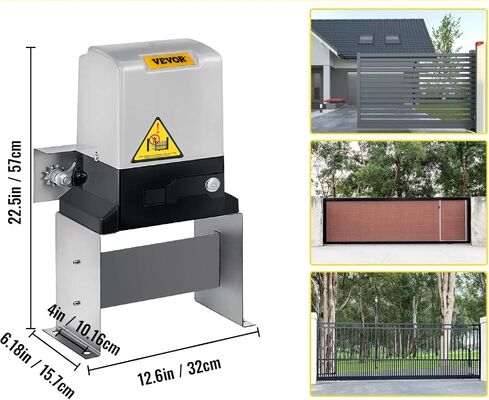

Automatic sliding gate opener motor showing complete unit installation
Key Features
  • High Power Options: Motor power 370W/550W/750W/1200W, adapts to 100-2200kg sliding gate weight requirements
  • Stable Operation Performance: Motor speed 1400R/MIN, running speed 12M/MIN, starting current only 3A, low power consumption & high efficiency
  • Wide Temperature Adaptability: Works stably in -25°C to +70°C environment, suits various climatic conditions
  • Double Limit Protection: Equipped with magnetic limit switch and spring limit switch, avoid overrun & ensure position accuracy
  • Manual Emergency Function: Clutch device realizes manual operation when power failure, turn 90 degree clockwise with special key for quick switch
  • Reliable Safety Design: Grounding resistance less than 4 ohms, with leakage short circuit protection, weld limit iron block to prevent gate tilting
Close-up view of gate motor internal components and construction Gate motor installation diagram and technical specifications
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600kg 800kg 1200kg 1800kg 2500kg
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V 50HZ / AC110V 60HZ
Output Power DC24V
Limit Switch Magnetic Limit
Noise ≤50dB
Working Temperature -25°C to 70°C
IP Class IP65
Packaging & Delivery
Product packaging and shipping preparation Secure packaging for international shipping
Premium Construction Features
Aluminum Alloy Shell
Strictly select aluminum materials according to standards to provide customers with high-quality products
Rust Proof Stainless Steel Gear
Durable, rust resistant, and corrosion-resistant construction
Reserve Power Supply
After a power outage, there is a backup power supply available
Company Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Company headquarters and research development center
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities.
For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.
We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications.
These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch.
Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities.
We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.
Quality control and testing process Product certification and quality assurance
Frequently Asked Questions
Is there any inventory available?
Having sufficient inventory:
  • 100 sets of inventory for each type of product
  • The inventory products are in neutral packaging and do not have a brand
Delivery Time
Ship on the same day or the next day after receiving payment
Customized Content
  • Product logo customization: For machines with more than 20 sets, logos can be customized for free
  • Customization of outer packaging: Free customization of outer packaging for more than 100 sets
After-Sale Service
  • Most products have a one-year warranty period, starting from the receipt of the goods
  • Free accessories provided during the warranty period, excluding shipping costs
  • Provide free technical support
