Heavy Duty Sliding Gate Motor AC Powered Automatic Door Opener for Large Gate
Product Overview
Key Features

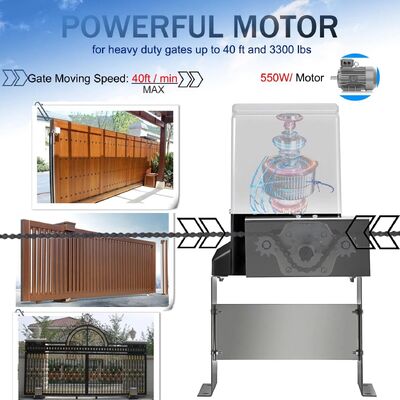

- High Power Options: Motor power 370W/550W/750W/1200W, adapts to 100-2200kg sliding gate weight requirements
- Stable Operation Performance: Motor speed 1400R/MIN, running speed 12M/MIN, starting current only 3A, low power consumption & high efficiency
- Wide Temperature Adaptability: Works stably in -25°C to +70°C environment, suits various climatic conditions
- Double Limit Protection: Equipped with magnetic limit switch and spring limit switch, avoid overrun & ensure position accuracy

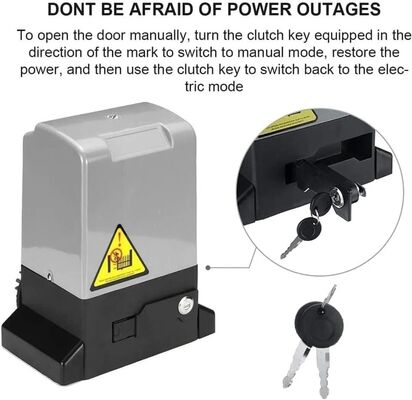

- Manual Emergency Function: Clutch device realizes manual operation when power failure, turn 90 degree clockwise with special key for quick switch
- Reliable Safety Design: Grounding resistance less than 4 ohms, with leakage short circuit protection, weld limit iron block to prevent gate tilting
Technical Specifications
| Model |
MD280 |
MD370 |
MD550 |
MD750 |
MD1200 |
| Max Gate Weight |
600KG |
800KG |
1200KG |
1800KG |
2500KG |
| Rated Power |
280W |
370W |
550W |
750W |
1200W |
| Load Speed |
12m/min |
| Input Power |
AC220V 50HZ / AC110V 60HZ |
| Output Power |
DC24V |
| Limit Switch |
Magnetic Limit |
| Noise |
≤50dB |
| Working Temperature |
-25°C to 70°C |
| IP Class |
IP65 |
Packaging & Construction
Aluminum Alloy Shell: Strictly select aluminum materials according to standards to provide customers with high-quality products
Rust Proof Stainless Steel Gear: Durable, rust resistant, and corrosion-resistant
Reserve Power Supply: After a power outage, there is a backup power supply available
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.
We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications.
These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch.
Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities. We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.
Frequently Asked Questions
Is there any inventory available?
Having sufficient inventory:
- 100 sets of inventory for each type of product
- The inventory products are in neutral packaging and do not have a brand
Delivery Time
Ship on the same day or the next day after receiving payment
Customized Content
- Product logo customization: For machines with more than 20 sets, logos can be customized for free
- Customization of outer packaging: Free customization of outer packaging for more than 100 sets
After-Sales Service
- Most products have a one-year warranty period, starting from the receipt of the goods
- Free accessories provided during the warranty period, excluding shipping costs
- Provide free technical support
