Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor

Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor
Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor

Large Image :  Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 75
Contact Now Chat Now

Smart Control Long Life Electric Gate Opener with 370W/550W/750W/1200W Motor Power and 12M/MIN Running Speed IP65 Waterproof Sliding Gate Motor

Description
Motor Power: 370W/550W/750W/1200W Max Gate Weight: 600KG/800KG/1200KG/1800KG/2500KG
Motor Speed: 1400R/MIN Running Speed: 12M/MIN
Starting Current: 3A Working Temperature: -25°C To +70°C
Grounding Resistance: <4 Ohms Input Power: AC220V 50HZ / AC110V 60HZ
Output Power: DC24V Limit Switch: Magnetic Limit
Noise Level: ≤50dB IP Class: IP65
Shell Material: Aluminum Alloy Gear Material: Stainless Steel
Load Speed: 12m/min
Highlight:

370W/550W/750W/1200W Motor Power Sliding Gate Motor

,

12M/MIN Running Speed Electric Gate Opener

,

IP65 Waterproof Automatic Gate Motor

Smart Control Long Life Electric Gate Opener
High-performance sliding door motor designed for reliable automated gate operation with advanced safety features and wide compatibility.

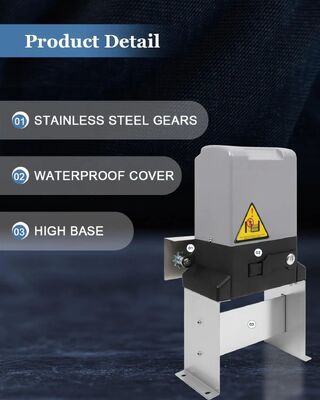

Smart Control Electric Gate Opener main product view
Key Features
  • Multiple power options: 370W/550W/750W/1200W motors adapt to 100-2200kg sliding gate weight requirements
  • Stable operation: 1400R/MIN motor speed, 12M/MIN running speed, with only 3A starting current for low power consumption
  • Wide temperature range: Operates reliably in -25°C to +70°C environments for various climate conditions
  • Double limit protection: Magnetic and spring limit switches prevent overrun and ensure precise positioning

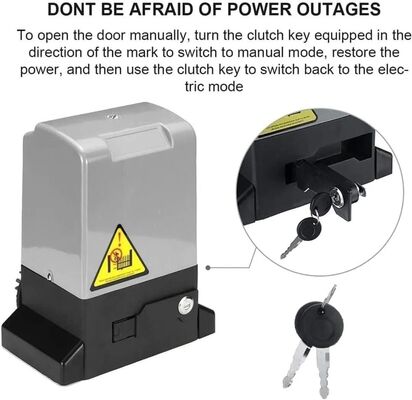

  • Manual emergency function: Clutch device enables manual operation during power failure with 90-degree key rotation
  • Advanced safety design: Grounding resistance under 4 ohms, leakage/short circuit protection, and weld limit iron blocks prevent gate tilting
Electric gate opener internal mechanism

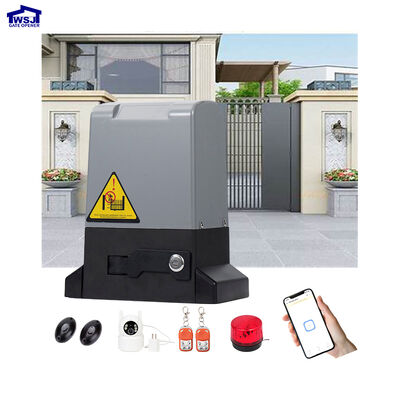

Gate motor installation example
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600KG 800KG 1200KG 1800KG 2500KG
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V 50HZ / AC110V 60HZ
Output Power DC24V
Limit Switch Magnetic Limit
Noise Level ≤50dB
Working Temperature -25°C to 70°C
IP Class IP65
Construction & Packaging

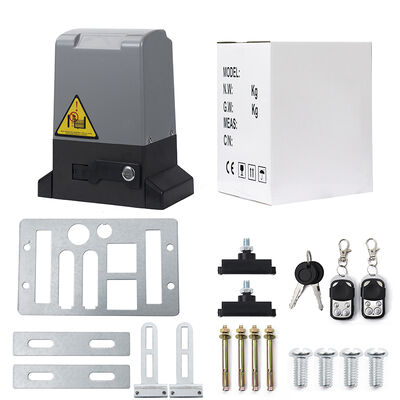

Gate opener packaging and delivery
Gate motor construction details
Premium Materials: Aluminum alloy shell manufactured to strict standards for high-quality performance
Durable Components: Rust-proof stainless steel gear for exceptional durability and corrosion resistance
Backup Power: Reserve power supply available for continued operation during power outages
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment facility
Company manufacturing capabilities
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg, suitable for both residential and industrial applications.
Featuring standard and high-speed models with excellent soft-start and soft-stop performance, we have become a leading enterprise in the Chinese DC sliding door motor market with numerous patents, including a globally unique electronic limit switch.
We provide OEM/ODM services and are committed to delivering high-quality products that help partners expand their businesses and users achieve smarter automation goals.
Additional product application example
Product installation demonstration
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets of each product type available in neutral packaging without branding.
What is the delivery time?
Shipment occurs on the same day or next day after payment confirmation.
What customization options are available?
Product logo customization available free for orders of 20+ sets. Outer packaging customization free for orders of 100+ sets.
What is the after-sales service policy?
Most products include a one-year warranty from receipt date. Free accessories provided during warranty period (shipping costs excluded). Free technical support available.
