24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor

24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor
24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor 24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor 24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor 24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor 24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor

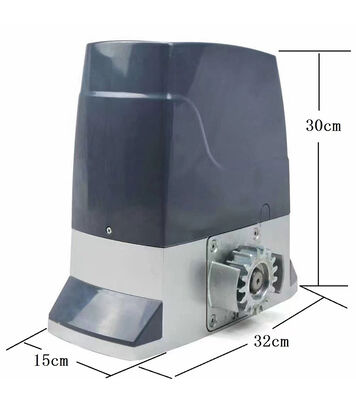

Large Image :  24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 145
Contact Now Chat Now

24V DC Brushless Heavy Duty Sliding Gate Opener with 800kg-2500kg Capacity and IP55 Waterproof Automatic Gate Motor

Description
Electric Current: DC Max Gate Weight: 800kg/1000kg/1500kg/2000kg/2500kg
Noise Level: ≤50db Driving Type: Electromechanical
Rated Power: 130W Working Temperature: -30℃~+65℃
IP Class: IP55 Output Power: DC24V
Dimensions: 34*27*40cm Load Speed: 12m/Min
Input Power: AC220V/110V±10% Limit Switch: Spring Limit/Magnetic Limit
Shell Material: Aluminum Alloy Gear Material: Stainless Steel
Reserve Power: Backup Power Supply
Highlight:

24V DC Brushless Sliding Gate Opener

,

800kg-2500kg Capacity Automatic Gate Motor

,

IP55 Waterproof Gate Operator

Heavy Duty Industrial Sliding Gate Opener 24V DC Brushless Solar Automatic Gate Motor
Professional-grade automatic gate opener designed for industrial applications with solar compatibility and advanced safety features.
Heavy duty industrial sliding gate opener motor unit
Key Features
  • Ultra-quiet operation with soft start and soft stop functionality
  • Supports frequent opening and closing cycles with obstruction rebound safety
  • Automatic door closing with master-slave connection capability
  • Optional battery backup and solar power compatibility
  • Remote and mobile app control support
  • Complete motor systems with independently designed circuit boards
Internal components and circuit board of gate motor Gate motor installation and application example
Technical Specifications
Model BG800 BG1000 BG1500 BG2000 BG2500
Max Gate Weight 800KG 1000KG 1500KG 2000KG 2500KG
Rated Power 110W 130W 180W 280W 350W
Load Speed 12m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch Spring Limit / Magnetic Limit
Noise Level ≤50dB
Working Temperature -30℃ to +65℃
IP Class IP55
Packaging & Delivery
Product packaging and shipping materials Product components and construction details
Construction Quality
  • Aluminum alloy shell with standardized material selection for high-quality performance
  • Rust-proof stainless steel gears for durability and corrosion resistance
  • Backup power supply capability for continued operation during power outages
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Company overview and production capabilities
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
Our product line includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg, suitable for both residential and industrial applications.
We offer standard speed and high-speed models featuring excellent soft-start and soft-stop performance. As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch.
Our products are sold worldwide and highly praised by users. With an independent R&D team and strong development capabilities, we provide OEM/ODM services committed to delivering high-quality products and supporting our partners' business growth.
Product testing and quality control processes Final product assembly and inspection
Frequently Asked Questions
Inventory Availability
We maintain sufficient inventory with 100 sets available for each product type. Inventory products feature neutral packaging without branding.
Delivery Time
Orders ship on the same day or next day after payment confirmation.
Customization Options
Product logo customization available free for orders of 20+ sets. Outer packaging customization available free for orders of 100+ sets.
After-Sales Service
Most products include a one-year warranty period starting from receipt of goods. Free accessories provided during warranty period (shipping costs excluded). Comprehensive technical support included.
