220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor

220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor
220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor 220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor 220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor 220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor 220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor

Large Image :  220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 75
Contact Now Chat Now

220V AC Electric Gate Opener with 600kg Max Gate Weight IP55 Waterproof and 12m/min Load Speed Sliding Gate Motor

Description

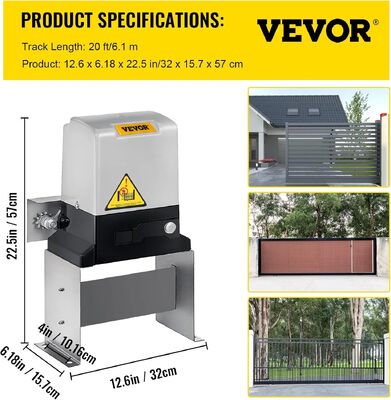

Dimensions: 32*26*39cm Input Power: AC220V/110V±10%
Driving Type: Electromechanical Noise Level: ≤50db
Working Temp: -30℃~+65℃ Load Speed: 12m/Min
Rated Power: 130W Electric Current: AC
Max Gate Weight: 600kg/800kg/1200kg/1800kg/2200kg Output Power: DC24V
IP Class: IP55 Motor Power: 370W/550W/750W/1200W
Motor Speed: 1400R/MIN Starting Current: 3A
Grounding Resistance: Less Than 4 Ohms
Highlight:

600kg Max Gate Weight Sliding Gate Motor

,

IP55 Waterproof Automatic Gate Motor

,

12m/min Load Speed Electric Gate Opener

220V AC Door Opener with Copper Winding Electric Sliding Gate Motor for Industrial Use
Professional-grade electric sliding gate motor designed for industrial applications with robust construction and reliable performance.
Industrial sliding gate motor installation and operation
Key Features
  • High Power Options: Motor power 370W/550W/750W/1200W, adapts to 100-2200kg sliding gate weight requirements
  • Stable Operation: Motor speed 1400R/MIN, running speed 12M/MIN, starting current only 3A for low power consumption and high efficiency
  • Wide Temperature Range: Works stably in -25°C to +70°C environments, suitable for various climatic conditions
  • Double Limit Protection: Equipped with magnetic limit switch and spring limit switch to prevent overrun and ensure position accuracy

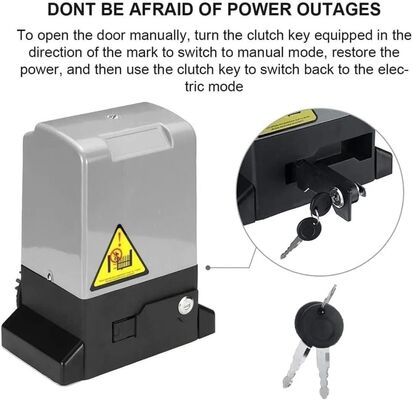

  • Manual Emergency Function: Clutch device enables manual operation during power failure - turn 90 degrees clockwise with special key for quick switch
  • Reliable Safety Design: Grounding resistance less than 4 ohms, with leakage short circuit protection, weld limit iron block to prevent gate tilting
Close-up view of gate motor components Gate motor in operational environment
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600kg 800kg 1200kg 1800kg 2500kg
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V 50HZ / AC110V 60HZ
Output Power DC24V
Limit Switch Magnetic Limit
Noise ≤50dB
Working Temperature -25°C to 70°C
IP Class IP65
Packaging & Construction
Gate motor packaging and delivery Gate motor construction details
Aluminum Alloy Shell: Strictly selected aluminum materials according to standards for high-quality products
Rust Proof Stainless Steel Gear: Durable, rust resistant, and corrosion-resistant construction
Reserve Power Supply: Backup power supply available after power outage for continuous operation
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Company overview and capabilities
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems. We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800kg to 6500kg, suitable for general residential and industrial applications. These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch. Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities. We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.
Additional product application examples Product support and service information
Frequently Asked Questions
Is there any inventory available?
Having sufficient inventory: 100 sets of inventory for each type of product; inventory products are in neutral packaging without brand
Delivery Time
Ship on the same day or the next day after receiving payment
Customized Content
Product logo customization: Free for orders of 20+ sets; Customization of outer packaging: Free for orders of 100+ sets
After-Sales Service
Most products have one-year warranty from receipt date; Free accessories provided during warranty period (excluding shipping costs); Free technical support provided
