1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor

1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor
1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor 1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor 1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor 1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor 1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor

Large Image :  1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 183
Contact Now Chat Now

1000kg Load Capacity High Speed 18m/24m/36m Low Voltage DC24V Automatic Gate Opener Motor

Description
Electric Current: DC Dimensions: 34*27*40cm
Load Speed: 18m/24m/36m/Min Working Temp: -30℃~+65℃
IP Class: IP55 Rated Power: 250W
Output Power: DC24V Driving Type: Electromechanical
Load Capacity: 1000kg Noise Level: ≤50db
Input Power: AC220V/110V±10% Limit Switch: Spring Limit/Magnetic Limit
Max Gate Weight: 1000KG Aluminum Alloy Shell: Yes
Stainless Steel Gear: Yes
Highlight:

1000kg Load Capacity Automatic Gate Opener

,

High Speed 18m/24m/36m Gate Motor

,

Low Voltage DC24V Automatic Gate Motor

18m/24m/36m 1000kg High Speed Automatic Gate Opener Low Voltage
Professional automatic gate opener system designed for heavy-duty industrial and residential applications with advanced safety features and reliable performance.
High Speed Automatic Gate Opener - Main Product View
Key Features & Characteristics
  • Dual Hall Encoder Backup Design: Ensures motor operation remains unaffected by voltage fluctuations and door weight variables. Provides precise triggering of slow-down braking at preset positions with dual-safety redundancy for maximum reliability.
  • Slow Travel Learning: Travel learning is conducted at slow speed, combined with soft start and soft stop functions to effectively protect door body and prevent collisions.

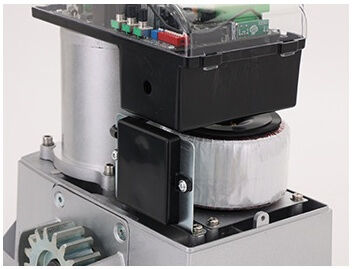

Gate Opener Internal Mechanism Gate Opener Installation Example
Technical Specifications
Model BGH-18M BGH-24M BGH-36M
Max Gate Weight 1000KG 1000KG 1000KG
Rated Power 250W 300W 350W
Load Speed 18m/min 24m/min 36m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch Spring Limit / Magnetic Limit
Noise Level ≤50dB
Working Temperature -30℃ ~ +65℃
IP Class IP55
Construction & Packaging
Gate Opener Packaging Gate Opener Components
  • Aluminum Alloy Shell: Strictly selected aluminum materials according to standards for high-quality, durable construction
  • Rust Proof Stainless Steel Gear: Durable, rust resistant, and corrosion-resistant components for long-term reliability
  • Reserve Power Supply: Backup power supply available during power outages for continuous operation
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment Facility Sichuan Duoxiang Intelligent Equipment Production
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems.
We have developed a comprehensive series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for both residential and industrial applications. Our products include standard speed and high-speed models featuring excellent soft-start, soft-stop performance and overall reliability.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products sell well both domestically and internationally and are highly praised by users. We provide OEM/ODM services, committed to delivering high-quality products and supporting our partners' business growth.
Sichuan Duoxiang Product Range Sichuan Duoxiang Quality Control
Frequently Asked Questions
Inventory Availability: We maintain sufficient inventory with 100 sets available for each product type. Inventory products come in neutral packaging without branding.
Delivery Time: Orders ship on the same day or next day after payment confirmation.
Customization Options:
  • Product logo customization available for orders of 20+ sets at no additional cost
  • Outer packaging customization available for orders of 100+ sets at no additional cost
After-Sales Service:
  • One-year warranty period starting from receipt of goods
  • Free replacement accessories provided during warranty period (shipping costs excluded)
  • Complimentary technical support provided
