220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use

Certification
China Sichuan Wanshijia Technology Co., Ltd certification
China Sichuan Wanshijia Technology Co., Ltd certification
Customer Reviews
Это очень профессиональная фабрика. Мы уже дважды сотрудничали с ними; они решили мои индивидуальные технические проблемы и проявили исключительную готовность к сотрудничеству. Настоятельно рекомендую.

—— Дмитрий

I feel very comfortable working with Alisa. She helped me customize my logo, and although my company is still small, she has been very helpful.

—— Robert Smith

This is a professional factory, and the product quality is excellent. My customers have had virtually no after-sales issues after using their products, and the market feedback has been very positive.

—— Michael Brown

I'm Online Chat Now

220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use

220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use
220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use 220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use 220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use 220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use 220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use

Large Image :  220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 75
Contact Now Chat Now

220V AC Electric Gate Opener with 600kg Max Gate Weight 12m/min Load Speed and IP55 Waterproof Sliding Gate Motor for Industrial Use

Description
Load Speed: 12m/Min IP Class: IP55

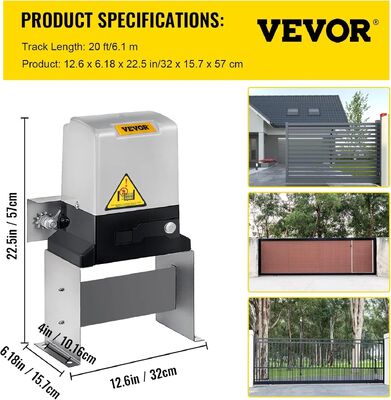

Dimensions: 32*26*39cm Driving Type: Electromechanical
Limit Switch: Spring Limit/Magnetic Limit Working Temp: -30℃~+65℃
Electric Current: AC Max Gate Weight: 600kg/800kg/1200kg/1800kg/2200kg
Rated Power: 130W Input Power: AC220V/110V±10%
Output Power: DC24V Noise Level: ≤50db
Motor Speed: 1400R/MIN Starting Current: 3A
Grounding Resistance: Less Than 4 Ohms
Highlight:

600kg Max Gate Weight Sliding Gate Motor

,

12m/min Load Speed Automatic Gate Motor

,

IP55 Waterproof Electric Gate Opener

220V AC Door Opener with Copper Winding Maintenance-Free Electric Sliding Gate Motor
High-performance electric sliding gate motor designed for industrial applications with robust construction and reliable operation.
Industrial sliding gate motor installation
Key Features
  • Multiple power options: 370W/550W/750W/1200W motors adapt to 100-2200kg sliding gate weight requirements
  • Stable operation: 1400R/MIN motor speed, 12M/MIN running speed, with only 3A starting current for low power consumption
  • Wide temperature range: Operates reliably in -25°C to +70°C environments for various climate conditions
  • Dual limit protection: Magnetic limit switch and spring limit switch prevent overrun and ensure precise positioning

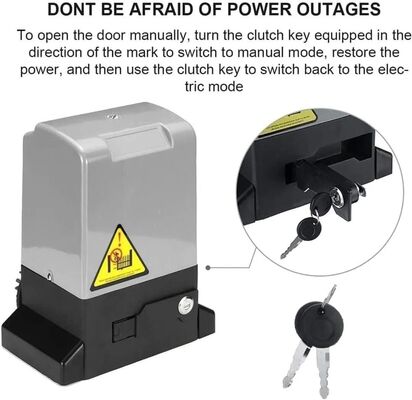

  • Manual emergency function: Clutch device enables manual operation during power failure with 90-degree clockwise key rotation
  • Advanced safety design: Grounding resistance under 4 ohms with leakage and short circuit protection, plus weld limit iron block to prevent gate tilting
Gate motor internal components Gate motor technical specifications
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600KG 800KG 1200KG 1800KG 2500KG
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V 50HZ / AC110V 60HZ
Output Power DC24V
Limit Switch Magnetic Limit
Noise ≤50dB
Working Temperature -25°C to 70°C
IP Class IP65
Packaging & Construction
Gate motor packaging Gate motor construction details
Aluminum Alloy Shell: Strictly selected aluminum materials according to standards for high-quality products
Stainless Steel Gear: Durable, rust-resistant, and corrosion-resistant construction
Backup Power Supply: Reserve power available after power outages for continuous operation
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment facility Sichuan Duoxiang Intelligent Equipment products
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions. Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg, suitable for residential and industrial applications. We offer standard speed and high-speed models with excellent soft-start and soft-stop performance. As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold worldwide and highly praised by users. We provide OEM/ODM services and are committed to delivering high-quality products to help partners expand their businesses.
Gate motor applications Gate motor installation examples
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets of each product type available in neutral packaging without branding.
What is the delivery time?
Ships on the same day or next day after receiving payment.
What customization options are available?
Product logo customization: Free for orders of 20+ sets
Outer packaging customization: Free for orders of 100+ sets
What after-sales service do you provide?
Most products include one-year warranty from receipt of goods
Free accessories provided during warranty period (shipping costs excluded)
Free technical support available
