High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating

High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating
High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating

Large Image :  High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: 203
Contact Now Chat Now

High Speed Brushless Motor Automatic Gate Opener with 1500kg Load Capacity and IP65 Waterproof Rating

Description
IP Class: IP65 Driving Type: Electromechanical
Rated Power: 300W Input Power: AC220V/110V±10%
Load Speed: 15m/Min Electric Current: DC
Output Power: DC24V Noise Level: ≤53db
Load Capacity: 1500kg Limit Switch: Spring Limit/Magnetic Limit
Working Temp: -25℃~+65℃ Dimensions: 37*26*25cm
Max Gate Weight: 1500KG Load Speed Range: 7-15m/min
Motor Type: Brushless
Highlight:

Brushless Motor Gate Opener

,

1500kg Load Capacity Automatic Gate Motor

,

IP65 Waterproof Sliding Gate Motor

High Speed Brushless Motor Residential Industrial Door Opener with Battery
Advanced brushless motor technology for residential and industrial gate automation systems.
Brushless motor residential industrial door opener
Key Features
  • Brushless Motor Technology: Ultra-long lifespan, maintenance-free operation, no heat generation during extended use, and ultra-quiet performance
  • All-Round Electric Limit: Simplified installation and debugging without mechanical limits, precise limit memory, no need to relearn travel distance after power interruption or clutch release
  • Adjustable High Speed: Door opening speed adjustable within 50% range, compatible with curved sliding doors, folding doors, sliding doors with fixed panels, and top-hung sliding doors

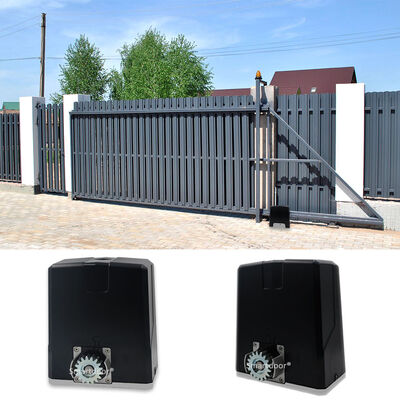

Motor installation and application examples Motor specifications and technical details
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Rated Power 200W 300W 400W
Load Speed 7-15m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch All-round electric limit
Noise Level ≤53dB
Working Temperature -25℃~+65℃
IP Class IP65
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Sichuan Duoxiang Intelligent Equipment company overview
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in the research, development, and production of access control systems and smartphone access control solutions.
Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors, with load capacities from 800 kg to 6500 kg, suitable for both residential and industrial applications. These motors feature standard and high-speed models with excellent soft-start and soft-stop performance.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold domestically and internationally with excellent user feedback. We offer OEM/ODM services and are committed to providing high-quality products to help partners expand their businesses.

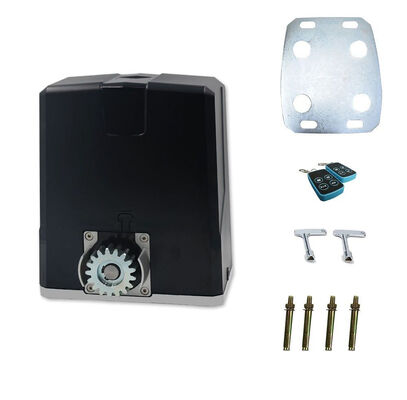

Motor technical details and components Motor installation and application scenarios
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets of each product type available. Inventory products come in neutral packaging without branding.
Delivery Time
Shipment occurs on the same day or next day after payment receipt.
Customized Content
Product logo customization available free for orders of 20+ sets. Outer packaging customization free for orders of 100+ sets.
After-Sales Service
Most products include one-year warranty from receipt date. Free accessories provided during warranty period (excluding shipping costs). Free technical support available.
