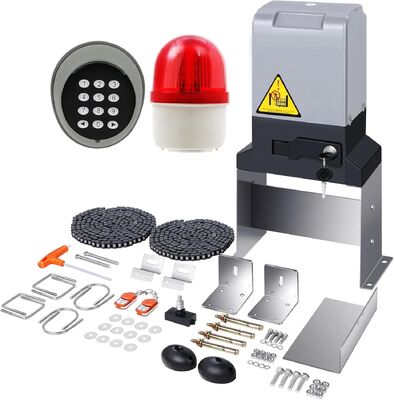

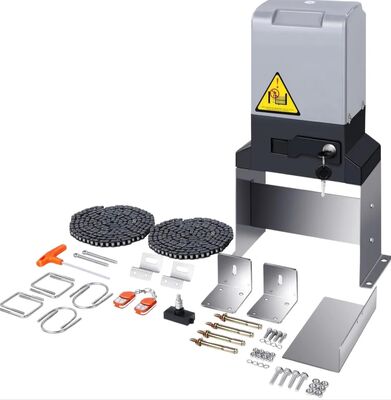

Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation

Certification
China Sichuan Wanshijia Technology Co., Ltd certification
China Sichuan Wanshijia Technology Co., Ltd certification
Customer Reviews
Это очень профессиональная фабрика. Мы уже дважды сотрудничали с ними; они решили мои индивидуальные технические проблемы и проявили исключительную готовность к сотрудничеству. Настоятельно рекомендую.

—— Дмитрий

I feel very comfortable working with Alisa. She helped me customize my logo, and although my company is still small, she has been very helpful.

—— Robert Smith

This is a professional factory, and the product quality is excellent. My customers have had virtually no after-sales issues after using their products, and the market feedback has been very positive.

—— Michael Brown

I'm Online Chat Now

Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation

Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation
Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation

Large Image :  Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 99
Contact Now Chat Now

Automatic Chain Sliding Gate Motor with 600kg Max Gate Weight IP65 Rated and Infrared Sensor for Secure Operation

Description
Load Speed: 12m/Min Driving Type: Electromechanical
Rated Power: 280W Model: MD280
Specification: 32*26*52cm Electric Current: AC
Limt Switch: Spring Limit/Magnetic Limit Noise: ≤50db
Working Temp: -25℃~+70℃ Input Power: AC220V/110V±10%
IP Class: IP65 Max Gate Weight: 600kg/800kg/1200kg/1800kg/2200kg
Gross Weight: 14KG Gear Rack: 8pcs Of 13.12ft, 8mm To 12mm Thick Solid Steel
Shell Material: Aluminum Alloy
Highlight:

600kg Max Gate Weight Sliding Gate Opener

,

IP65 Rated Gate Motor

,

Infrared Sensor Automatic Chain Sliding Gate Motor

Automatic Chain Sliding Gate Motor for Villa, Factory & Farm Gates with CE
Professional automatic sliding gate motor designed for residential, commercial, and agricultural applications with CE certification for safety and quality assurance.
Automatic chain sliding gate motor installation example
Key Features
  • Secure Safety Design: Infrared obstacle detection with automatic stop function, adjustable rebound force, and over-heating protection for maximum safety
  • Heavy-Duty Performance: Copper motor operates on AC 110~240V 50Hz, capable of moving gates up to 1800lbs and 40ft in length
  • Quiet Rack Drive System: 8 solid steel gear racks (13.12ft each) ensure smooth, quiet operation (≤45dB) with weatherproof, corrosion-resistant construction
  • Advanced Control Options: Auto-close timer (5s, 10s, 20s), Wi-Fi module compatibility, includes 2 remote controls with 100ft range and support for 40 remote codes
  • Lifetime Technical Support: Comprehensive installation and operational support from our expert team
Sliding gate motor internal components and construction Gate motor technical specifications diagram
Technical Specifications
Model MD280 MD370 MD550 MD750 MD1200
Max Gate Weight 600KG 800KG 1200KG 1800KG 2200KG
Rated Power 280W 370W 550W 750W 1200W
Load Speed 12m/min
Input Power AC220V/110V±10%
Gross Weight 14KG
Limit Switch Spring Limit/Magnetic Limit
Noise Level ≤50dB
Working Temperature -30℃~+65℃
IP Class IP55
Packaging & Delivery

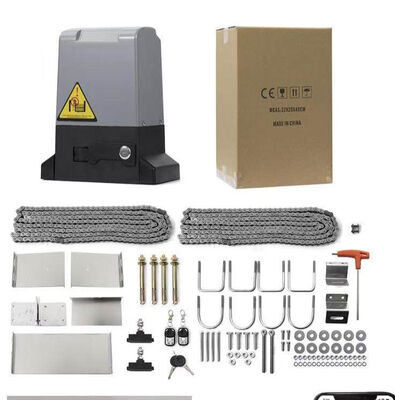

Gate motor packaging and shipping process Gate motor aluminum alloy shell and stainless steel gear
Premium Construction Materials: Aluminum alloy shell manufactured to strict standards for high-quality performance. Rust-proof stainless steel gear ensures durability and corrosion resistance for long-term reliability.
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Duoxiang Intelligent Equipment company overview
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions. Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg. We offer standard speed and high-speed models featuring excellent soft-start, soft-stop performance and hold numerous patents, including a globally unique electronic limit switch. We provide OEM/ODM services and are committed to delivering high-quality products for residential and industrial applications worldwide.
Duoxiang product quality certification and testing Duoxiang technical support and customer service
Frequently Asked Questions
Inventory Availability: Maintain sufficient inventory with 100 sets available for each product type in neutral packaging.

Delivery Time: Ships same day or next day after payment confirmation.

Customization Options: Free logo customization for orders of 20+ sets; free outer packaging customization for 100+ sets.

After-Sales Service: One-year warranty from receipt date; free accessories during warranty period (excluding shipping); comprehensive technical support provided.
