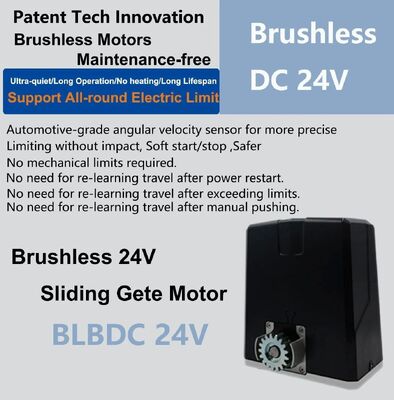

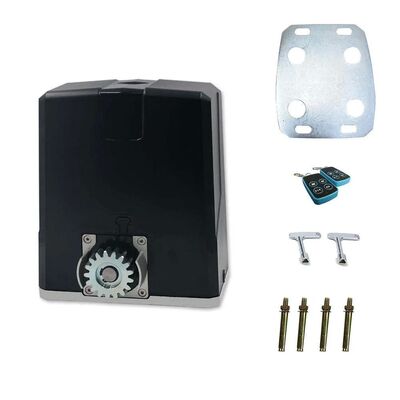

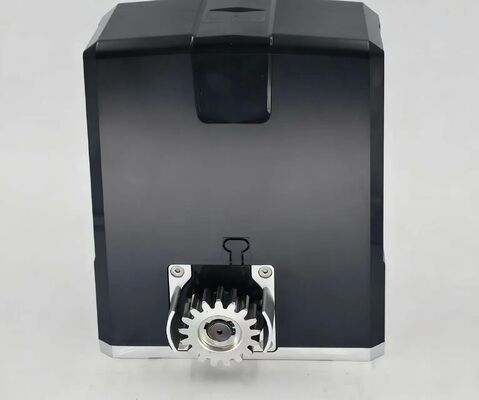

Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation

Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation
Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation

Large Image :  Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now Chat Now

Automatic Sliding Gate Motor with 24V BLDC Brushless Motor Electronic Limit Control for 24/7 Continuous Operation

Description
Motor Type: 24V BLDC Brushless Motor Load Capacity: 1000KG/1500KG/2000KG
Motor Power: 200W/300W/400W Door Speed: 7-15M/Min
Input Voltage: AC220v50HZ /AC110V 60HZ Output Voltage: DC24V
Battery Type: Power Lithium Batteries Limit Position: Full-range Electronic Limit
Motor Speed: 2100rpm Operating Temperature: -25°C~+65℃
Noise Level: ≤53dB Protection Class: IP65
Shell Material: Aluminum Alloy Gear Material: Stainless Steel
Backup Power: Reserve Power Supply
Highlight:

24V BLDC Brushless Motor Automatic Sliding Gate Motor

,

Electronic Limit Control Gate Opener Motor

,

24/7 Continuous Operation Sliding Gate Operator

Automatic Sliding Gate Motor with Electronic Limit
24/7 continuous operation with no overheating for reliable access control
Automatic sliding gate motor installation
Key Features
  • Premium 24V BLDC Brushless Motor enables 24-hour continuous operation with zero overheating, ultra-quiet performance, and minimal mechanical loss
  • Intelligent Power Failure Memory System automatically identifies gate position after power cuts, eliminating recalibration needs
  • Full-range Electronic Limit Control provides high precision without mechanical wear or deviation issues
  • Safe Low Voltage DC24V Design with built-in backup lithium battery for uninterrupted operation during power outages
  • Adjustable Running Speed from 7 to 15 meters per minute for various gate types and applications
  • Solar Energy Compatible with low power consumption design, ideal for remote villa and industrial entrances
Gate motor internal components Gate motor technical diagram
Technical Specifications
Model BLB1000KG BLB1500KG BLB2000KG
Load Capacity 1000KG 1500KG 2000KG
Motor Power 200W 300W 400W
Door Speed 7-15M/Min
Input Voltage AC220v50HZ /AC110V 60HZ
Output Voltage DC24V
Battery Power lithium batteries
Limit Position Full-range electronic limit
Motor Speed 2100rpm
Operating Temperature -25°C~+65℃
Noise ≤53dB
Protection Class IP65
Gate motor application example Gate motor construction details
Premium Construction
  • Aluminum alloy shell manufactured to strict standards for high-quality durability
  • Rust-proof stainless steel gear for exceptional corrosion resistance
  • Backup power supply ensures operation during power outages
Company Profile
Sichuan Duoxiang Intelligent Equipment facility Sichuan Duoxiang company overview
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
We have developed a comprehensive range of high-quality DC sliding door motors, including brushless DC motors, DC series motors, and AC series motors with load capacities from 800 kg to 6500 kg. Our products feature excellent soft-start, soft-stop performance and are suitable for both residential and industrial applications.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold worldwide and highly praised by users. We offer OEM/ODM services and are committed to providing high-quality products that help partners expand their businesses.
Duoxiang product lineup Duoxiang manufacturing process
Frequently Asked Questions
Inventory Availability
We maintain sufficient inventory with 100 sets available for each product type. Inventory products come in neutral packaging without branding.
Delivery Time
Orders ship on the same day or next day after payment confirmation.
Customization Options
Product logo customization available free for orders of 20+ sets. Outer packaging customization free for orders of 100+ sets.
After-Sales Service
Most products include a one-year warranty starting from receipt of goods. Free accessories provided during warranty period (shipping costs excluded). Comprehensive technical support included.
