24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator

24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator
24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator 24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator 24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator 24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator 24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator

Large Image :  24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 145
Contact Now Chat Now

24V DC Gate Motor with Backup Battery for Power Outage Protection - 800KG-2500KG Capacity Sliding Gate Operator

Description
Max Gate Weight: 800KG| 1000KG| 1500KG| 2000KG| 2500KG Rated Power: 110W| 130W| 180W| 280W| 350W
Load Speed: 12m/min Input Power: AC220V/110V±10%
Output Power: DC24V Limt Switch: Spring Limit/magnetic Limit
Noise Level: ≤50dB Working Temp: -30℃~+65℃
IP Class: IP55 Shell Material: Aluminum Alloy
Gear Material: Stainless Steel Backup Power: Reserve Power Supply
Motor Type: DC Sliding Door Motor Soft Start: Yes
Soft Stop: Yes
Highlight:

24V DC Gate Motor

,

Backup Battery Gate Motor

,

800KG-2500KG Capacity Sliding Gate Operator

BG Series 24V DC Sliding Gate Operator with Backup Battery
Professional-grade sliding gate motor designed for reliable operation and power outage protection with integrated backup battery system.

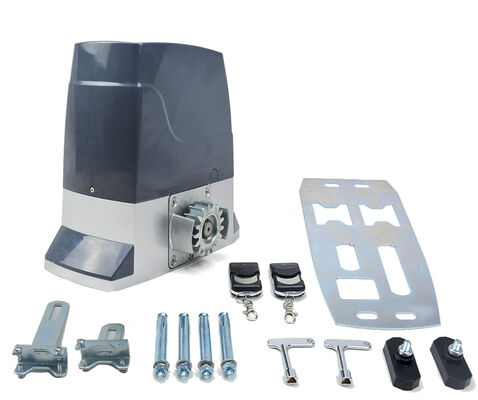

BG Series sliding gate motor unit
Key Features
  • Ultra-quiet operation with soft start and soft stop functionality
  • Automatic rebound when obstruction is detected
  • Automatic door closing and master-slave connection capability
  • Optional battery backup for power outage protection
  • Remote and mobile app control compatibility
  • Solar power support for energy-efficient operation
  • Complete motor systems with independently designed circuit boards

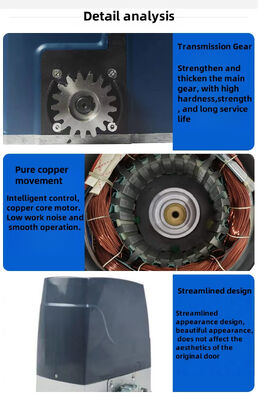

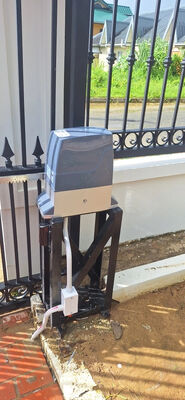

Gate motor internal components and design Gate motor installation example
Technical Specifications
Model BG800 BG1000 BG1500 BG2000 BG2500
Max Gate Weight 800KG 1000KG 1500KG 2000KG 2500KG
Rated Power 110W 130W 180W 280W 350W
Load Speed 12m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch Spring limit / Magnetic limit
Noise Level ≤50dB
Working Temperature -30℃ ~ +65℃
IP Class IP55
Packaging & Delivery
Product packaging overview Product delivery and shipping
Premium Construction
  • Aluminum alloy shell - Standard-grade aluminum materials for high-quality durability
  • Rust-proof stainless steel gear - Durable, rust-resistant, and corrosion-resistant components
  • Backup power supply - Continuous operation during power outages
Manufacturer Profile

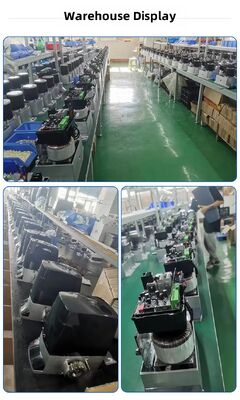

Sichuan Duoxiang Intelligent Equipment facility Company overview and capabilities
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in access control systems and smartphone access control solutions.
We have developed a comprehensive range of high-quality DC sliding door motors, including brushless DC motors, DC series motors, and AC series motors, with load capacities from 800kg to 6500kg for residential and industrial applications. Our products feature excellent soft-start, soft-stop performance and include standard and high-speed models.
As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch. Our products are sold worldwide and highly praised by users. We offer OEM/ODM services and are committed to providing high-quality products to help partners expand their businesses.

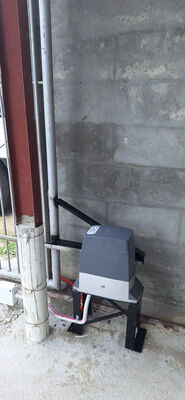

Product applications and installations Additional product features
Frequently Asked Questions
  • Inventory Availability:
    • 100 sets of inventory for each product type
    • Inventory products in neutral packaging without branding
  • Delivery Time: Ships same day or next day after payment receipt
  • Customization Options:
    • Product logo customization: Free for orders of 20+ sets
    • Outer packaging customization: Free for orders of 100+ sets
  • After-Sales Service:
    • One-year warranty period from receipt of goods
    • Free replacement parts during warranty (excluding shipping)
    • Complimentary technical support
