Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa

Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa
Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa

Large Image :  Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 145
Contact Now Chat Now

Safe Sliding Gate Motor with Obstacle Detection Rebound Function and 800kg Max Gate Weight for Residential Villa

Description
Noise: ≤50db Limit Switch: Spring Limit/Magnetic Limit
Driving Type: Electromechanical Load Speed: 12m/Min
Output Power: DC24V Rated Power: 130W
Input Power: AC220V/110V±10% Dimensions: 34*27*40cm
Electric Current: DC Model: Bg1000
Working Temp: -30℃~+65℃ IP Class: IP55
Max Gate Weight: 800kg/1000kg/1500kg/2000kg/2500kg Shell Material: Aluminum Alloy
Gear Material: Stainless Steel
Highlight:

Obstacle Detection Sliding Gate Motor

,

Rebound Function Automatic Gate Motor

,

800kg Max Gate Weight Gate Opener

Safe Sliding Gate Motor with Obstacle Detection and Rebound
Professional automatic gate motor designed for residential villas with advanced safety features and reliable performance.
Safe sliding gate motor for residential automatic gates
Key Features
  • Ultra-quiet operation with soft start and soft stop functionality
  • Obstacle detection with automatic rebound safety feature
  • Supports frequent door opening and closing cycles
  • Automatic door closing with master-slave connection capability
  • Optional battery backup and solar energy compatibility
  • Remote and mobile app control support
  • Complete motor systems with independently designed circuit boards

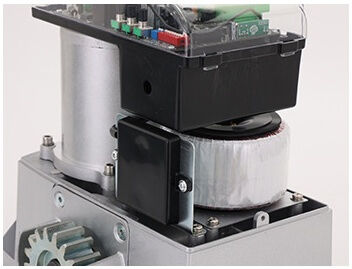

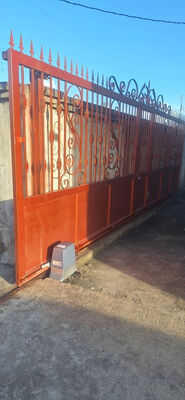

Gate motor internal components and design Gate motor installation and application
Technical Specifications
Model BG800 BG1000 BG1500 BG2000 BG2500
Max Gate Weight 800KG 1000KG 1500KG 2000KG 2500KG
Rated Power 110W 130W 180W 280W 350W
Load Speed 12m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch Spring limit/Magnetic limit
Noise Level ≤50dB
Working Temperature -30℃~+65℃
IP Class IP55
Packaging & Delivery

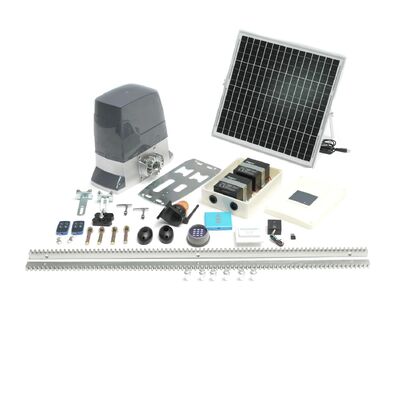

Gate motor packaging and shipping Gate motor components and construction
Premium Construction
  • Aluminum alloy shell with standardized material selection for high-quality performance
  • Rust-proof stainless steel gear for durability and corrosion resistance
  • Backup power supply capability for uninterrupted operation during outages
Company Profile
Sichuan Duoxiang Intelligent Equipment manufacturing facility Sichuan Duoxiang Intelligent Equipment company overview
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in the development and production of access control systems and smartphone access control solutions.
We have developed a comprehensive range of high-quality DC sliding door motors, including brushless DC motors, DC series motors, and AC series motors. Our products cover load capacities from 800 kg to 6500 kg, suitable for both residential and industrial applications.
Our motors feature standard and high-speed models with excellent soft-start and soft-stop performance. As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents, including a globally unique electronic limit switch technology.
Our products are well-received both domestically and internationally. With an independent R&D team and strong development capabilities, we provide OEM/ODM services committed to delivering high-quality products that help partners expand their businesses and achieve smarter automation goals.
Gate motor technical specifications and features Gate motor installation and operation
Frequently Asked Questions
Is there any inventory available?
We maintain sufficient inventory with 100 sets available for each product type. Inventory products come in neutral packaging without branding.
What is the delivery time?
We ship on the same day or next day after receiving payment.
What customization options are available?
  • Product logo customization: Free for orders of 20+ sets
  • Outer packaging customization: Free for orders of 100+ sets
What is the after-sales service policy?
  • Most products include a one-year warranty period starting from receipt of goods
  • Free accessories provided during warranty period (shipping costs excluded)
  • Complimentary technical support services
