DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems

DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems
DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems

Large Image :  DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems

Product Details:
Place of Origin: China
Brand Name: WSJ
Certification: CE
Model Number: BG1000
Document: DC24VSliding Gate Opener In...1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 140-200USD

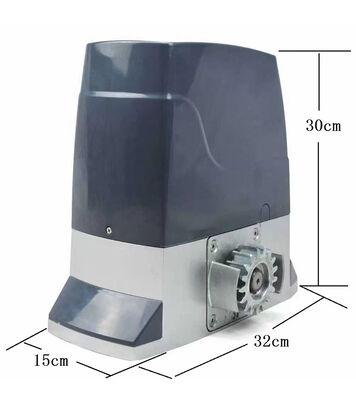

Packaging Details: 35cm*29cm*41cm
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: Unlimited
Contact Now Chat Now

DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems

Description
Product Name: Automatic Sliding Door System Max. Gate Weight: 2200KG
Keyword: DC24V Gate Opeartor Remote Control: 2 Remotes Included
Open(close) Speed: 12m/min Brand: Support OEM
Material: Pure Copper Movement Style: Motor Gate Opener
Function: Smart Home Automation MOQ: 1 Set
Max Gate Weight: 2200KG

Energy Saving Low Noise Remote Control DC 24V Smart Gate Motor Opener
This DC24V sliding gate opener is designed for automatic gate systems, integrating intelligent control with comprehensive safety features. Suitable for residential, commercial, and industrial applications, it delivers smooth, low-noise operation and supports various expansion modules for smart gate management.
Key Features
  • Anti-Rush Design: Prevents overshooting on first operation after power-on with slow motion to end stop
  • Co-op Mode: Two motors with same control board work synchronously with synchronized safety functions
  • Motor Runtime Protection: Automatically learns running time with 10-second safety margin
  • Auto-Close Function: Adjustable countdown from 1 to 250 seconds activates when gate is fully open
  • Soft Start & Stop: High-performance smooth operation with adjustable slow-stop sector
  • Resistance Stop & Rebound: Selectable obstacle detection for enhanced safety
  • Bluetooth Module Ready: Onboard socket for easy integration with optional Bluetooth module
  • Easy Network Control: One-button pairing with WiFi controllers for remote management
  • Multiple Remote Control Modes: Supports one-button, four-button, pedestrian mode, and one-key circle mode
Technical Specifications
Model BG1000 BG2000 BG2500 BG3000
Thrust 1000KG 2000KG 2500KG 3000KG
Input Voltage AC220V/110V AC220V/110V AC220V/110V AC220V/110V
Motor Voltage DC24V DC24V DC24V DC24V
Rated Power 130W 180W 250W 350W
Torque 21N.m 29N.m 47N.m 68N.m
Rotational Speed 1500rpm 1500rpm 1500rpm 1500rpm
Door Speed 12m/min 12m/min 12m/min 12m/min

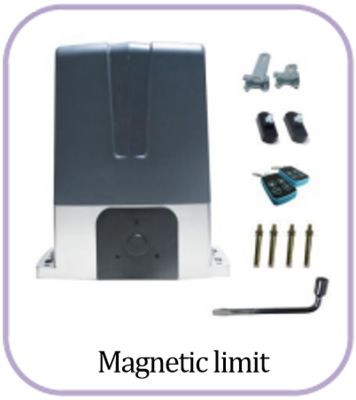

Limit magnetism magnetism magnetism magnetism
Noise ≤50dB ≤50dB ≤50dB ≤50dB
Ambient Temperature -45℃~+75℃ -45℃~+75℃ -45℃~+75℃ -45℃~+75℃
DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems 0 DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems 1 DC24V Low Noise 1000kg Thrust Smart Gate Motor Opener for Automatic Sliding Gate Systems 2
Additional switches allow selection between normally open (NO) or normally closed (NC) limit switches, and master/auxiliary motor configuration for co-op mode.
Safety & Protection
  • Resistance Sensitivity Adjustment: FORCE knob adjusts motor sensitivity to resistance for obstacle detection
  • LED Indicators: Clear visual status indicators for power, RF signal, auto-close countdown, and system states
  • Buzzer Alerts: Audible alerts for DIP switch changes, limit sensor conflicts, resistance stops, and low battery voltage
  • Battery Low Protection: UNDER-V LED warns when battery voltage drops below 19V for reliable operation
Flexible Applications
This gate opener is compatible with a range of optional accessories, including:
  • Bluetooth module
  • RFID keypad
  • Photocell sensors

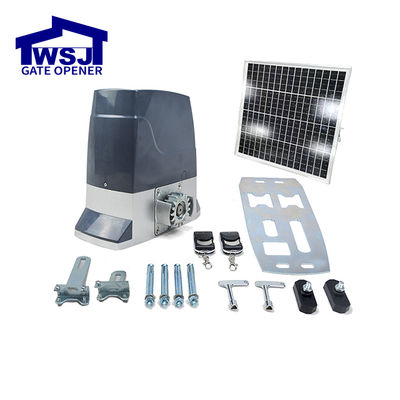

  • Solar panels and batteries
  • One-key or three-key wall switches
  • Warning lamps
Whether used for residential driveways, commercial entrances, or industrial perimeters, this DC24V sliding gate opener delivers intelligent control, robust safety, and reliable performance.
